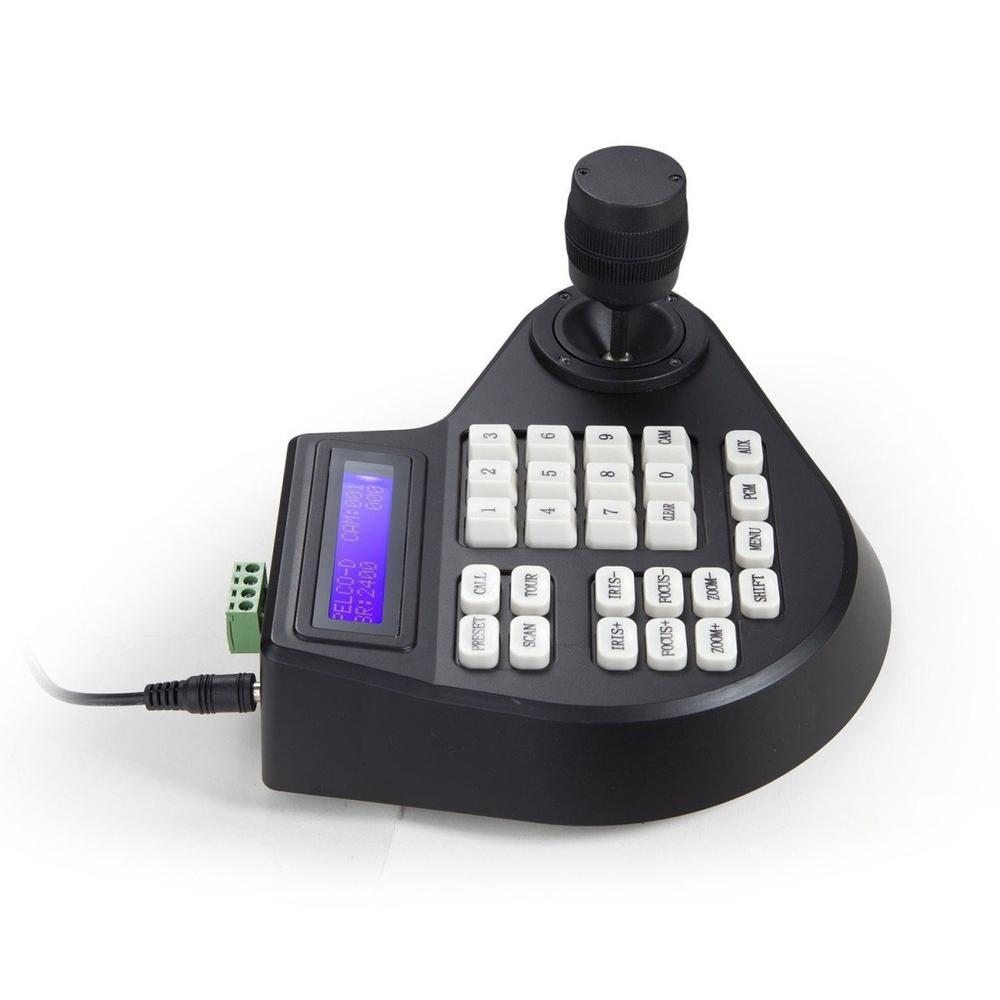

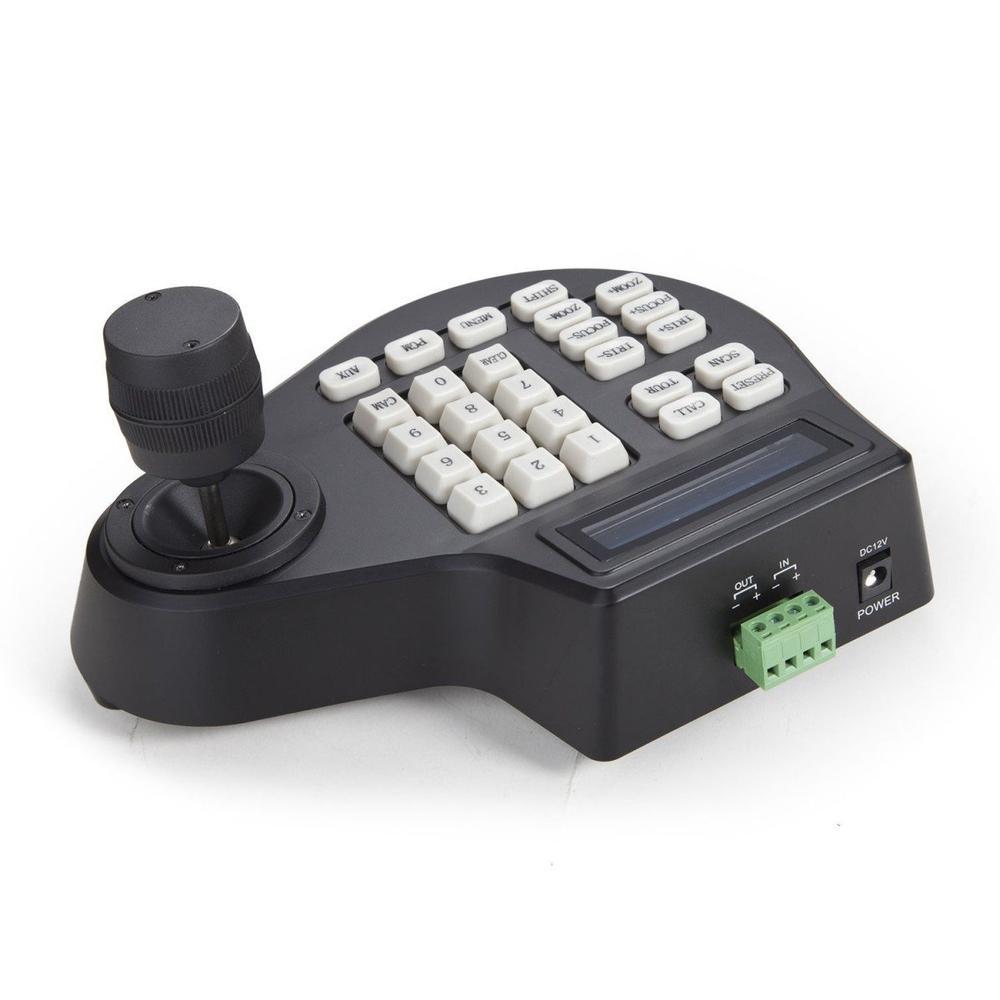

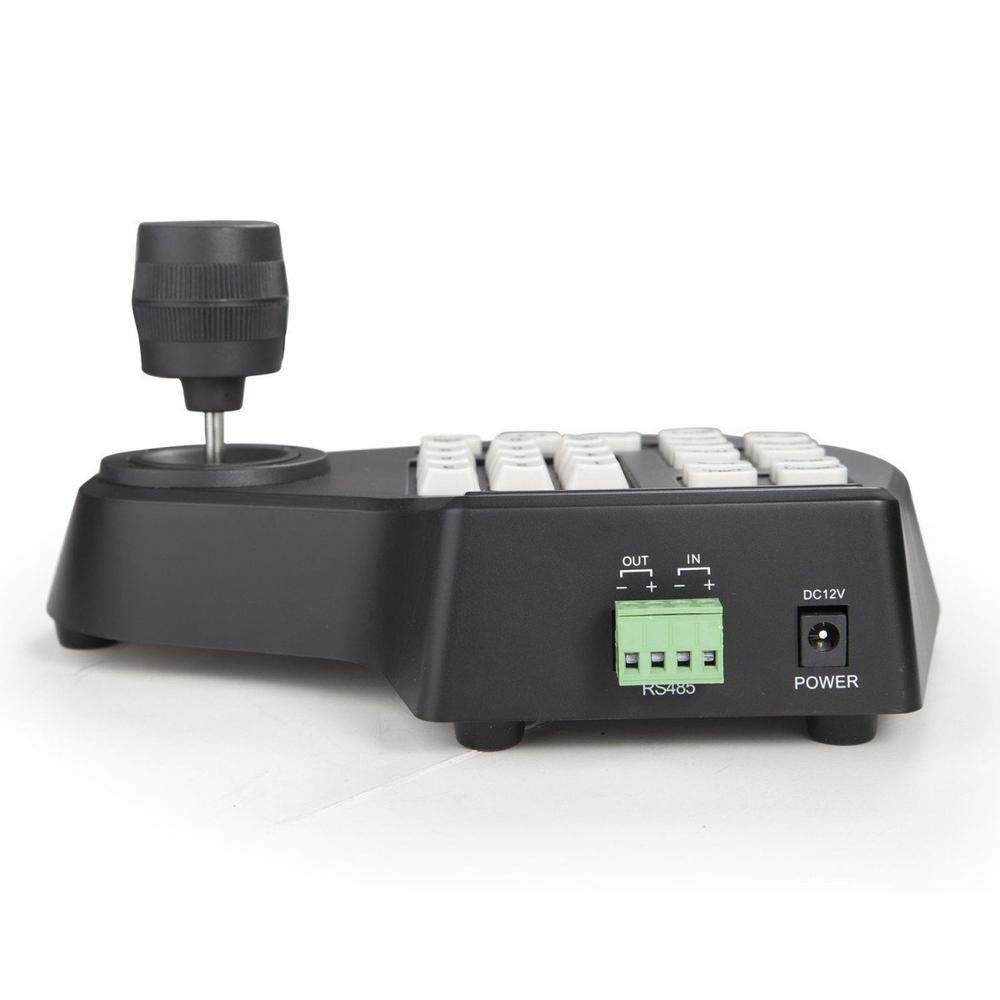

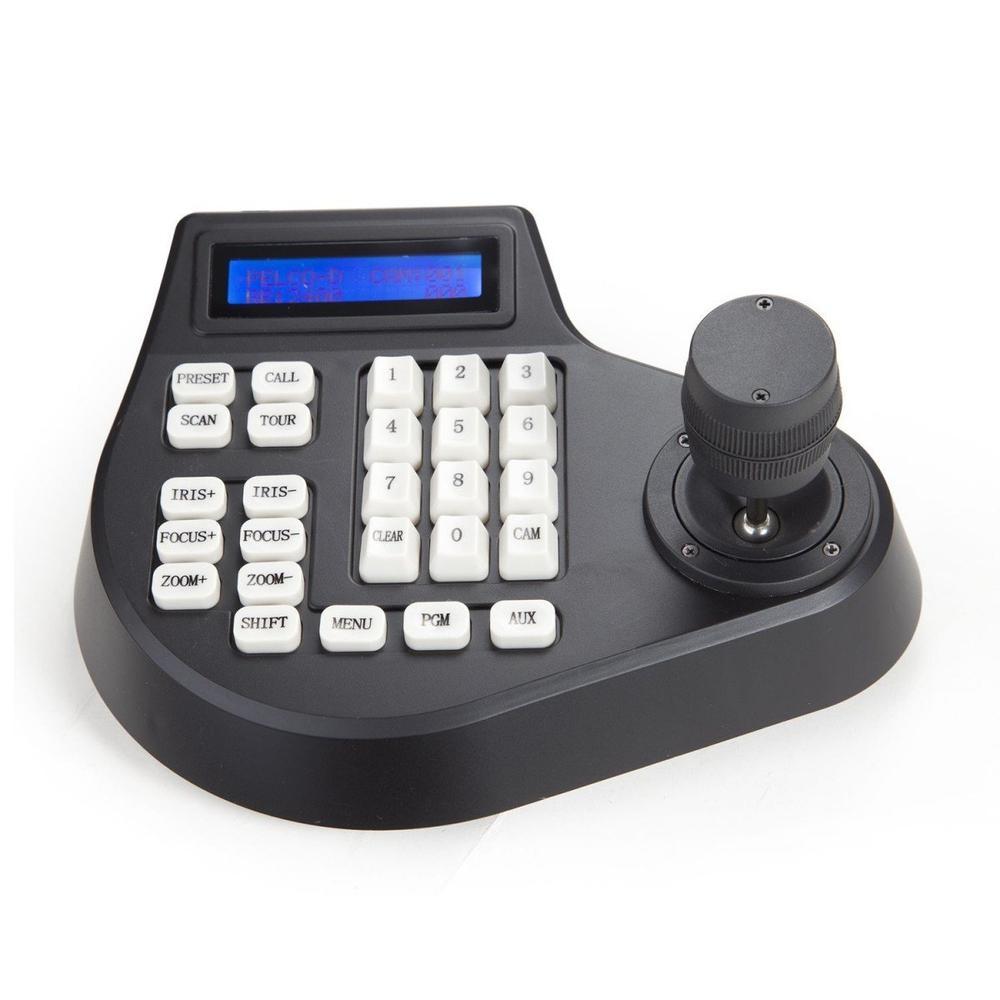

Annke PTZ Controller: 3D Axis Joystick

FEATURES

• This 3D PTZ Pan/Tilt/Zoom controller is designed to work with up to 32 PTZ speed dome cameras
• By using the 3 axis joystick you can control the Pan/Tilt direction and speed of each camera
• Photoelectric insulated RS485 controlling mode is adopted for the output of the keyboard, which provides strong anti-jamming and long-distance transmission
• Varying speed operation can be applied to the speed dome Pan/Tilt through the keyboard
• The high speed dome camera can be manually or automatically controlled with the keyboard
• Tour groups can be set up and run through the keyboard
• Pan/Tilt/Zoom Speed Dome cameras are motorised cameras controlled remotely through your DVR

Tech Specs

* Joystick control designed to be comfortable and ergonomic

* Manual or automatic control modes

* Communication Interface: RS485

* Baud rate of Communication: 1200/2400/4800/9600/19200 bps

* Communication distance: Max.1500m (0.5mm twisted-pair)

* Dimension: 48(H) X 205(L) X 168(W) mm

* Communication: RS-485 for mainframe connection

* Working Temperature: 0~40°C

* Power Supply: DC12V 0.5A

* Power Consumption: < 5W
