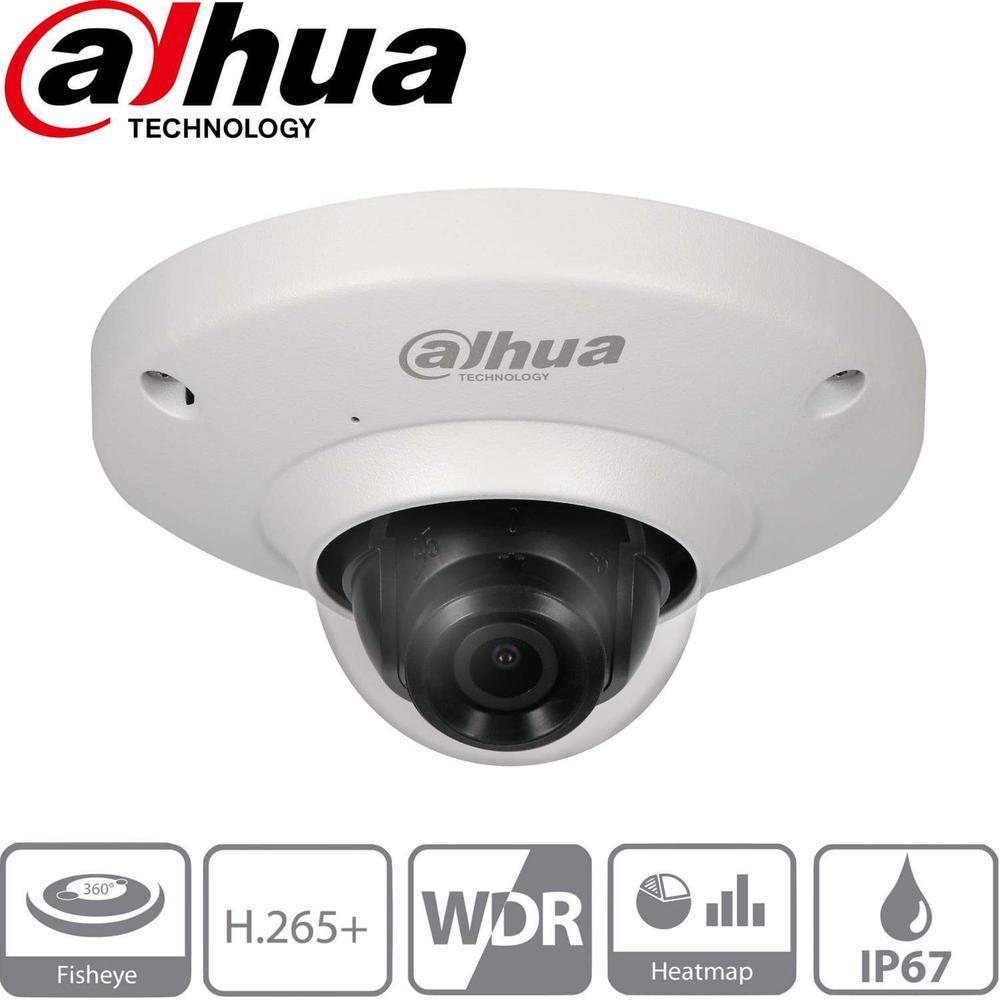

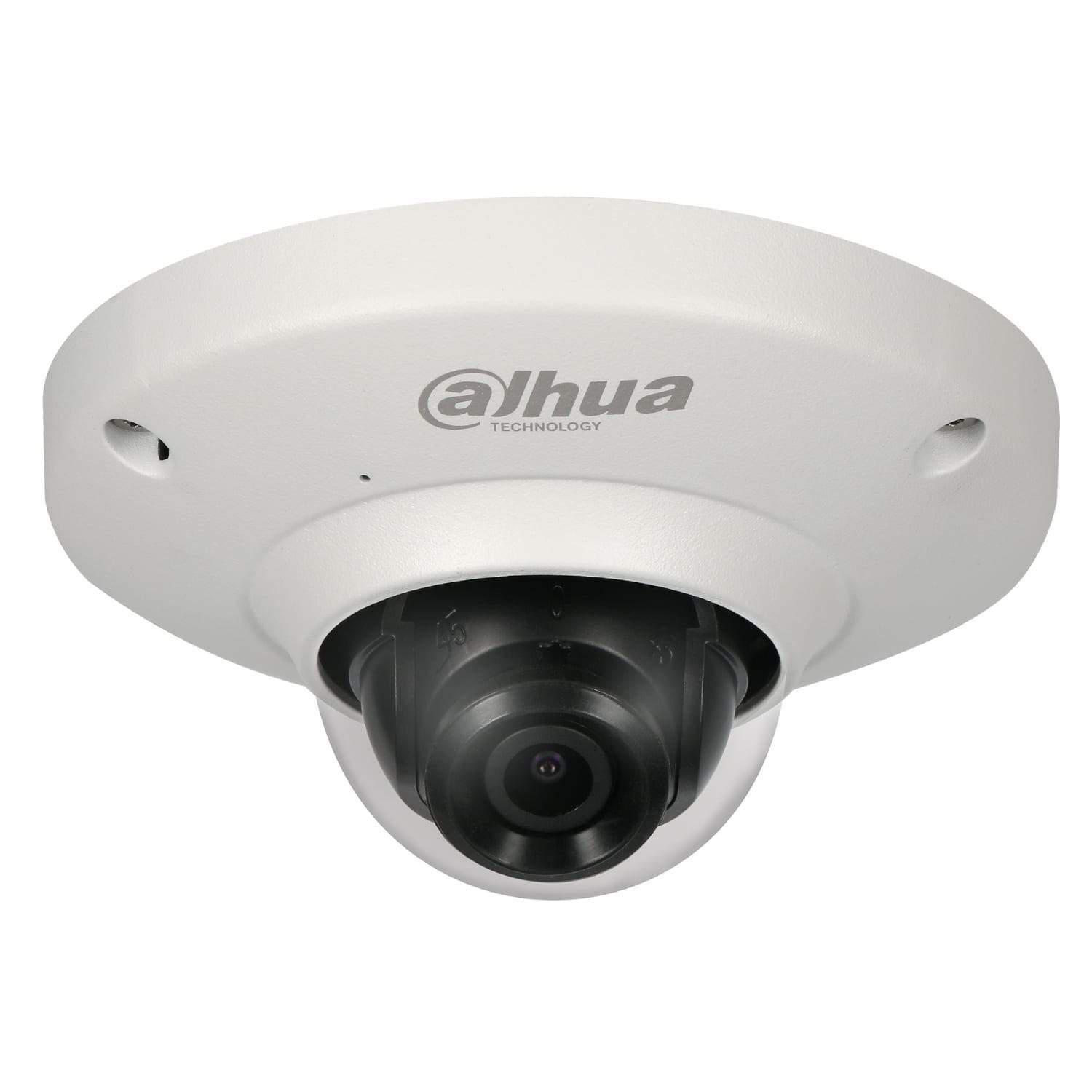

Dahua IPC-EB5531 Security Camera: 5MP Panoramic Fisheye
$375.00
The Dahua IPC-EB5531 camera is ideal for business/retail/shopping mall applications. It's equipped with heat map, an excellent tool for gathering crowd congestion data, as well as smart tripwire and intrusion detection. Image quality is excellent with 5 megapixel Super HD resolution and a fixed 1.4mm wide angle lens. Images are further enhanced by advanced backlight compensation, auto white balance, noise reduction and wide dynamic range to optimise light balance. Access your camera feed at any time from anywhere, by using the DMSS smartphone app or pc web browser. The camera also accommodates it's own storage, with SD card support up to 128GB.
As with all our products and brands, this is an original Dahua product from Australian stock and comes with full Dahua manufacturer warranty.
FEATURES
- 1/2.7” 5 Megapixel progressive scan CMOS
- 1.4mm fixed lens
- H.265+ /H.265/ H.264+ /H.264 Triple Stream encoding
- 25fps@5MP (2592× 1944), 25/30fps @3MP (2048× 1520)
- Wide Dynamic Range 120dB WDR, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC, Back Light Compensation BLC Region of Interest ROI
- Smart Detections - Tripwire, Intrusion, Heat Map
- Video Management Software for smartphone, tablet & PC - Supports Live streaming of your cameras from anywhere in the world
- Micro SD memory, Built-in Mic
- IP67, IK08 Vandal Resistance, PoE
More Info
DAHUA 5MP Panoramic Fisheye Camera - IPC-EB5531
Overview
With upgraded H.265+ encoding technology, the Dahua Eco-savvy series brings highly efficient video compression capability saving bandwidth and storage. This camera comes with intelligent image analysis and is easy to install thanks to POE Power Over Ethernet connecitons. IP67 ensures full protection from extreme weather conditions and its IK08 vandal resistance certification ensures this camera is capable of performing in the most unforgiving environments.
Wide Dynamic Range
This camera is equipped with industry leading wide dynamic range (WDR) technology, which produces vivid pictures even in the most intensely contrasted lighting conditions. It’s ideal for applications where lighting conditions can change quickly. True WDR (120dB) optimises both the bright and dark areas of a scene at the same time to provide usable video.
Intelligent Video System (IVS)
With built-in intelligent video analytics this camera has the ability to detect and analyse moving objects for enhanced video surveillance. This camera supports Tripwire analytics, allowing the camera to detect when a pre-determined line has been crossed, ideal for business surveillance. IVS also supports intrusion detection and heat map for business analytics, designed to help measure crowd density by colour code.
Smart H.265+
Delivering high quality video without straining the network, Smart H.265+ is the optimised implementation of H.265 video compression. The Smart H.265+ encoding technology includes a scene adaptive encoding strategy, dynamic GOP, dynamic ROI, flexible multi-frame reference structure and intelligent noise reduction, providing savings of up to 70% of bandwidth and storage when compared with standard H.265.
Interoperability
The camera conforms to the ONVIF (Open Network Video Interface Forum) specifications, ensuring interoperability between network video products regardless of manufacturer.
Protection (IP67, IK08, wide voltage, wide temperature)
Supporting ±30% input voltage tolerance, this camera suits even the most unstable conditions for outdoor applications. Its 4KV lightning rating provides protection against the camera and its structure from the effects of lightning. The camera can operate in temperature environments of -30 °C to +60 °C. An ingress protection rating of IP67 certifies the camera is suitable for extreme weather conditions and is sealed from water and dust.
Video Management Software, Smart PSS & DSS - Smartphone/Tablet/PC
You always have full access to your camera no matter where you are through software for PC and mac, and the integrated app for smartphone and tablet, which allows Live monitoring, the ability to control certain features of your camera as well as playback, setting alarms and smart detections.
Easy4ip Cloud
Easy 4ip is a user-friendly surveillance cloud platform that connects devices to a global cloud network. It enables Live streaming from mobile devices or PC, alarm notifications to your device, cloud storage, cloud upgrade for updating firmware and security for your personal data.
Tech Specs
DAHUA 5MP Panoramic Fisheye Camera - IPC-EB5531
| Camera | |
| Image Sensor | 1/2.7” 5 Megapixel progressive scan CMOS |
| Effective Pixels | 2592(H)x1944(V) |
| RAM/ROM | 512MB/32MB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s |
| Minimum Illumination | 0.02Lux/F1.6( Color,1/3s,30IRE) 0.2Lux/1.6( Color,1/30s,30IRE) 0.05Lux/F1.6( B/W,1/3s,30IRE) 0.5Lux/1.6( B/W,1/30s,30IRE) |
| S/N Ratio | More than 50dB |
| IR Distance | N/A |
| IR On/Off Control | N/A |
| IR LEDs | N/A |
| Lens | |
| Lens Type | Fixed |
| Mount Type | Board-in |
| Focal Length | 1.4mm |
| Max. Aperture | F1.6 |
| Angle of View | H: 180°, V: 180° |
| Optical Zoom | N/A |
| Focus Control | Fixed |
| Close Focus Distance | N/A |
| Pan/Tilt/Rotation | |
| Pan/Tilt/ Rotation Range | Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:0˚~360˚ |
| Intelligence | |
| Advanced Intelligent Functions | Tripwire ,Intrusion,Heat map |
| Video | |
| Compression | H.265+/H.265/ H.264+/H.264 |
| Streaming Capability | 3 Streams |
| Resolution | 5M (2592×1944)/ 3M(2048×1536)/ UXGA (1600×1200)/ 1.3M (1280×960)/ D1 (704×576/704×480)/ CIF (352×288/ 352×240) |
| Frame Rate | Main Stream:5M(1~25fps) |
| Sub Stream: D1(1~25/30fps) | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | H.264: 24~10240Kbps H.265: 14~9984Kbps |
| Day/Night | Electronic |
| BLC Mode | BLC / HLC / WDR |
| White Balance | Auto/ Natural/ Street Lamp/ Outdoor/ Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D DNR |
| Motion Detection | Off / On (4 Zone, Rectangle) |
| Region of Interest | Off / On (4 Zone) |
| Electronic Image Stabilization (EIS) | N/A |
| Smart IR | N/A |
| Defog | N/A |
| Digital Zoom | 16x |
| Flip | N/A |
| Mirror | Off / On |
| Privacy Masking | Off / On (4 Area, Rectangle) |
| Audio | |
| Compression | G.711a/ G.711Mu/ AAC/ G.726 |
| Network | |
| Ethernet | RJ-45 (10/100Base-T) |
| Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; IGMP; SNMP |
| Interoperability | ONVIF, PSIA, CGI |
| Streaming Method | Unicast / Multicast |
| Max. User Access | 10 Users /20 Users |
| Edge Storage | NAS Local PC for instant recording Mirco SD card 128GB |
| Web Viewer | IE, Chrome, Firefox, Safari |
| Management Software | Smart PSS, DSS, Easy4ip |
| Smart Phone | IOS, Android |
| Certifications | |
| Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B |
| Interface | |
| Video Interface | N/A |
| Audio Interface | Built-in Mic |
| RS485 | N/A |
| Alarm | N/A |
| Electrical | |
| Power Supply | DC12V, PoE (802.3af) (Class 0) |
| Power Consumption | <3.4W |
| Environmental | |
| Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH |
| Ingress Protection | IP67 |
| Vandal Resistance | IK08 |
| Construction | |
| Casing | Metal |
| Dimensions | Φ110mm× 56mm (4.33”×2.2”) |
| Net Weight | 0.38Kg (0.84lb) |
| Gross Weight | 0.44Kg (0.97lb) |
