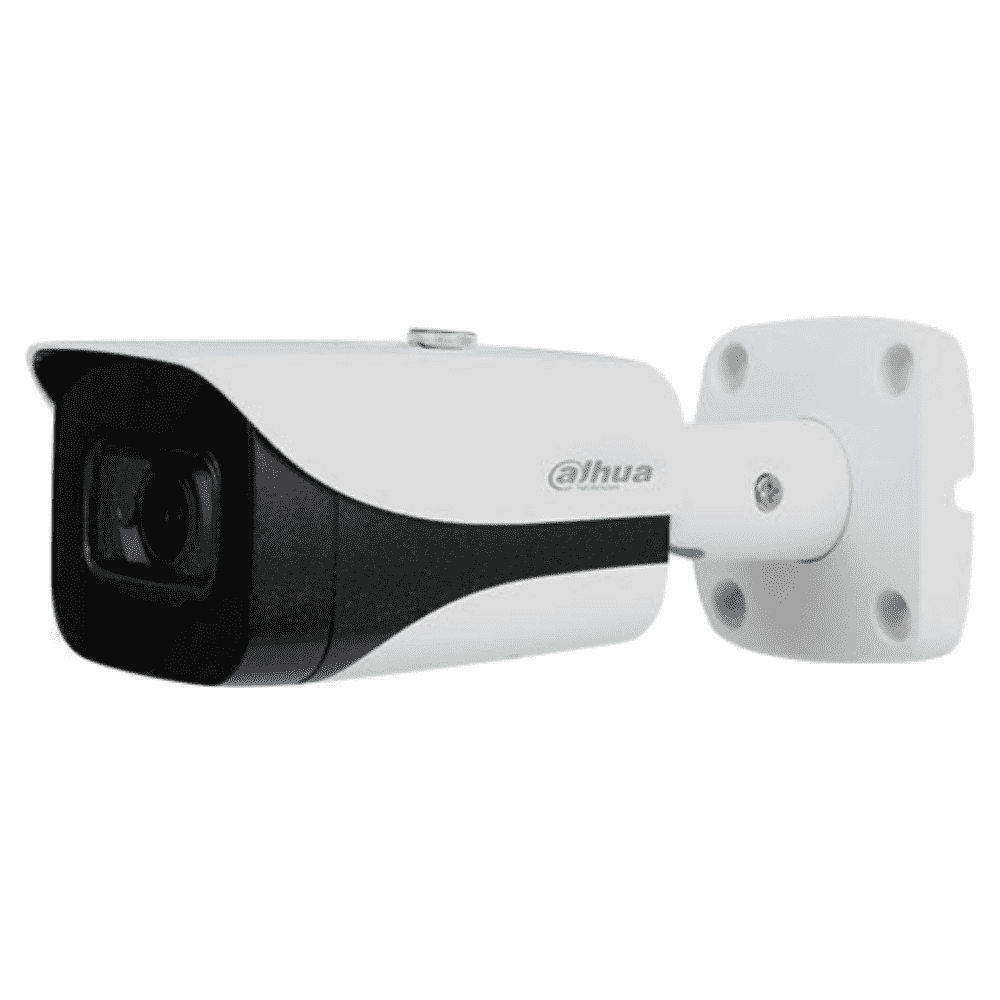

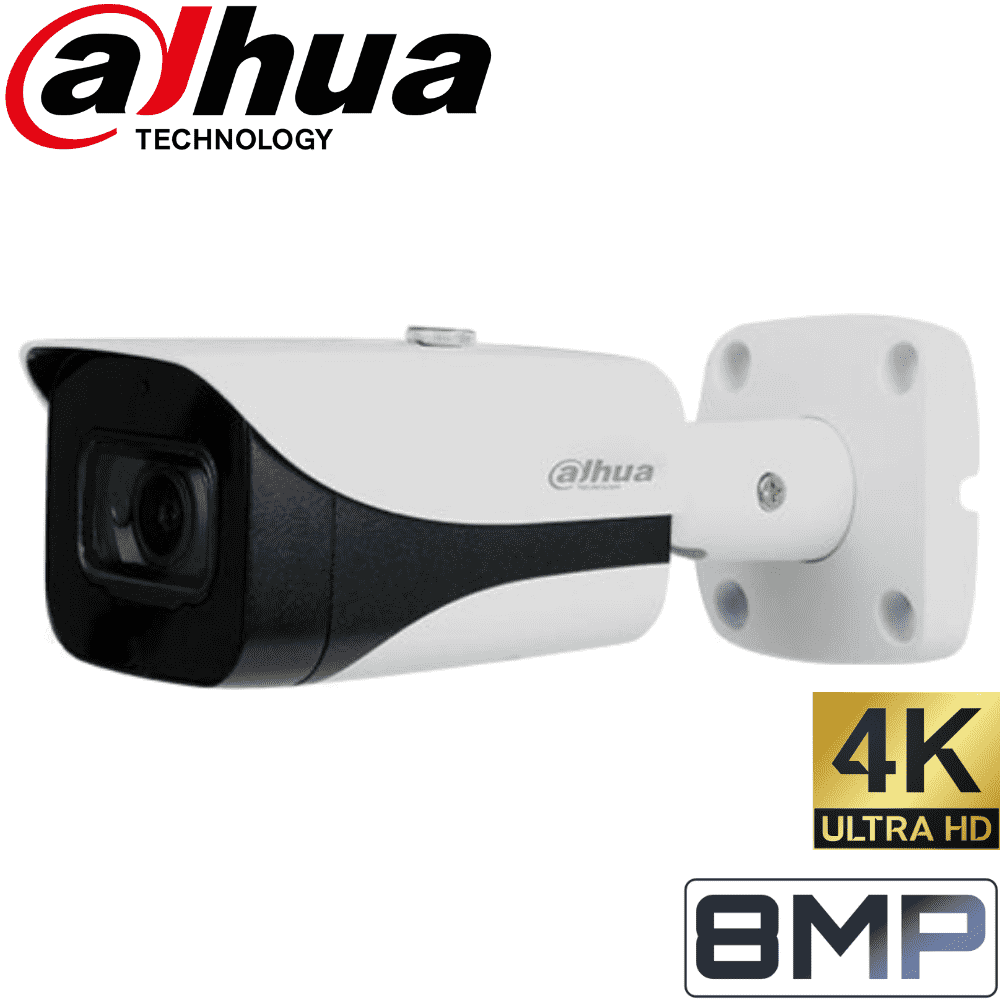

    Dahua IPC-HFW1831E Security Camera: 8MP Fixed Lens Mini-Bullet, IP67
    Dahua IPC-HFW1831E Security Camera: 8MP Fixed Lens Mini-Bullet, IP67
    Dahua IPC-HFW1831E Security Camera: 8MP Fixed Lens Mini-Bullet, IP67

    Dahua IPC-HFW1831E Security Camera: 8MP Fixed Lens Mini-Bullet, IP67

    $286.00

    The DH-IPC-HFW1831E is an infrared, fixed lens camera that delivers 8 megapixel or 4K Ultra HD resolution with an optional 2.8/4.0/6.0mm lens. The camera's elegant blend of aesthetics combined with a range of easy mounting solutions provides an excellent choice for a variety of small to mid-size applications at an affordable price.

    FEATURES

    • 1/1.8” 8 Megapixel progressive scan CMOS
    • H.265 & H.264 dual-stream encoding
    • 25/30fps@8MP(3840×2160)
    • Wide Dynamic Range 120dB, Day/Night auto Infrared Cut ICR, 3D Digital Noise Reduction 3DDNR, Auto White Balance AWB, Automatic Gain Control AGC& Back Light Compensation BLC
    • Smart Detection - Intrusion & Tripwire
    • Supports Starlight Technology - Colour recording in as low as 0.003Lux
    • Video Management app and software for smartphone, tablet & PC - Supports Live streaming your camera from anywhere in the world. Web viewer, Smart PSS, DSS & DMSS
    • 2.8mm Fixed Lens (4mm, 6mm optional)
    • 2 IR LEDs With Max. Range of 50m
    • PoESupport
    • IP67 Weather Proof



    Tech Specs

    Camera

    Image Sensor

    1/1.8” 8Megapixel progressive scan CMOS

    Effective Pixels

    3840(H) x 2160(V)

    RAM/ROM

    512MB/128MB

    Scanning System

    Progressive

    Electronic Shutter Speed

    Auto/Manual, 1/3(4)~1/100000s

    Minimum Illumination

    0.003Lux/ F1.6( Color, 1/3s,30IRE)

    0.08Lux/F1.6 ( Color, 1/30s,30IRE)

    0Lux/F1.6 (IR on)

    S/N Ratio

    More than 50dB

    IR Distance

    Distance up to 50m (164ft)

    IR On/Off Control

    Auto/ Manual

    IR LEDs

    2

    Lens

    Lens Type

    Fixed

    Mount Type

    Board-in

    Focal Length

    2.8mm (4mm, 6mm optional)

    Max. Aperture

    F1.6

    Angle of View

    H:111°/87°/55°, V:59°/47°/30°

    Optical Zoom

    N/A

    Focus Control

    Fixed

    Close Focus Distance

    1.5m (16.4ft)

    PTZ

    Pan/ Tilt/ Rotation Range

    Pan:0˚~355˚; Tilt: 0˚~90˚; Rotation: 0˚~355˚

    Intelligence

    Event Trigger

    Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly

    IVS

    Tripwire, Intrusion

    Video

    Compression

    H.265/H.264H/ MJPEG(Sub Stream)

    Smart Codec

    Support H.265+/ H.264+

    Streaming Capability

    2 Streams

    Resolution

    4K(3840×2160)/ 6M(3072×2048)/ 5M(2560×1920)/

    3M(2048x1536)/ 3M(2304× 1296)/

    1080P (1920× 1080)/ 1.3M(1280x 960)/

    720P(1280×720)/ D1(704×576/ 704×480) /VGA(640×480)/ CIF(352×288/ 352×240)

    Frame Rate

    Main Stream: 4K (1~25/30fps)

    Sub Stream: D1(1~25/30fps)

    Bit Rate Control

    CBR/VBR

    Bit Rate

    H.264:24K ~ 8192Kbps

    H.265:32K~ 8192Kbps

    Day/Night

    Auto(ICR) / Color / B/W

    BLC Mode

    BLC / HLC / WDR(120dB)

    White Balance

    Auto/ Natural/ Street Lamp/ Outdoor/ Manual

    Gain Control

    Auto/Manual

    Noise Reduction

    3D DNR

    Motion Detection

    Off / On (4 Zone, Rectangle)

    Region of Interest

    Off / On (4 Zone)

    Electronic Image Stabilization (EIS)

    N/A

    Smart IR

    Support

    Defog

    N/A

    Digital Zoom

    16x

    Flip

    0°/90°/180°/270°

    Mirror

    Off / On

    Privacy Masking

    Off / On (4 Area, Rectangle)

    Audio

    Compression

    N/A

    Network

    Ethernet

    RJ-45 (10/100Base-T)

    Protocol

    HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP

    Interoperability

    ONVIF Profile S&G, CGI

    Streaming Method

    Unicast / Multicast

    Max. User Access

    10 Users /20 Users

    Edge Storage

    NAS

    Local PC for instant recording

    Web Viewer

    IE, Chrome, Firefox, Safari

    Management Software

    Smart PSS, DSS, DMSS

    Smart Phone

    IOS, Android

    Certifications

    Certifications

    CE (EN 60950:2000)

    UL:UL60950-1

    FCC: FCC Part 15 Subpart B

    Interface

    Video Interface

    N/A

    Audio Interface

    N/A

    RS485

    N/A

    Alarm

    N/A

    Electrical

    Power Supply

    DC12V, PoE (IEEE802.3af) (Class 0)

    Power Consumption

    <7.8W

    Environmental

    Operating Conditions

    -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

    Storage Conditions

    -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH

    Ingress Protection

    IP67

    Vandal Resistance

    N/A

    Construction

    Casing

    Metal

    Dimensions

    179.9mm× 69.3mm× 62mm (7.08”× 2.73”× 2.44”)

    Net Weight

    0.48kg (1.06lb)

    Gross Weight

    0.51 kg (1.12lb)
