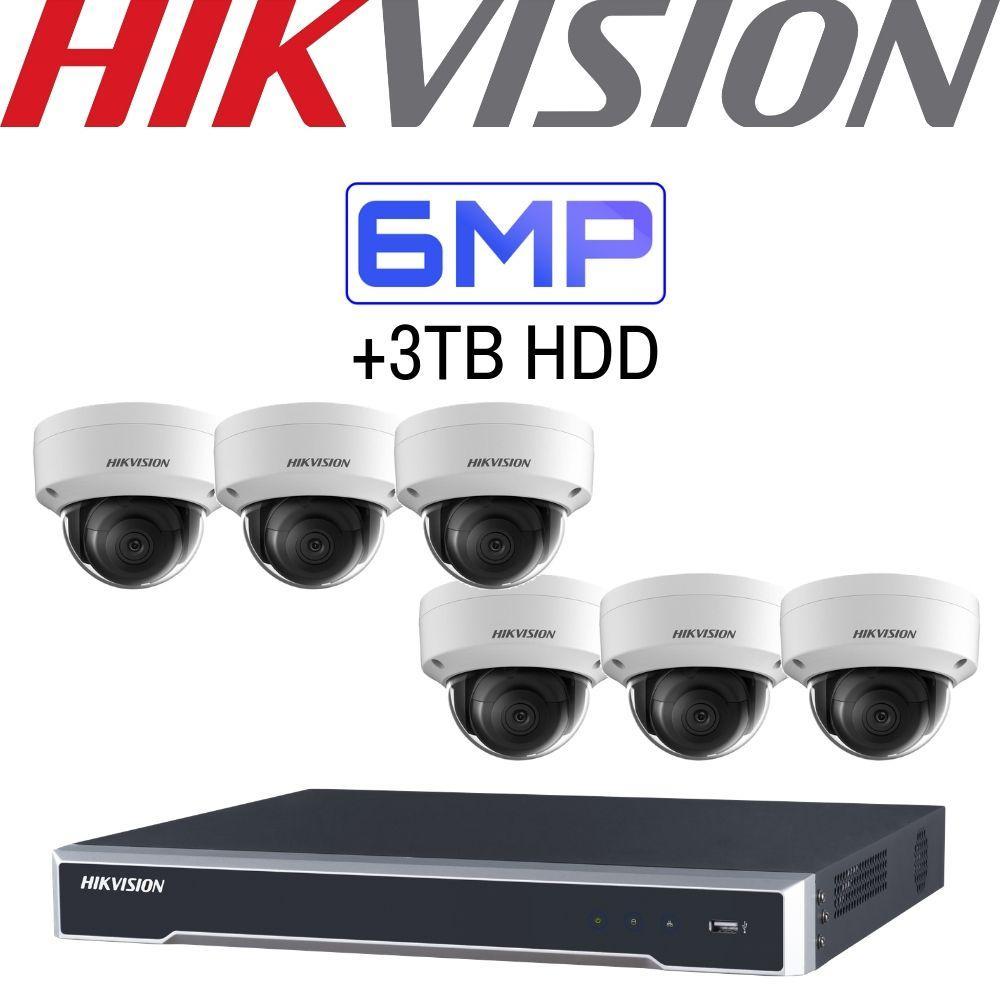

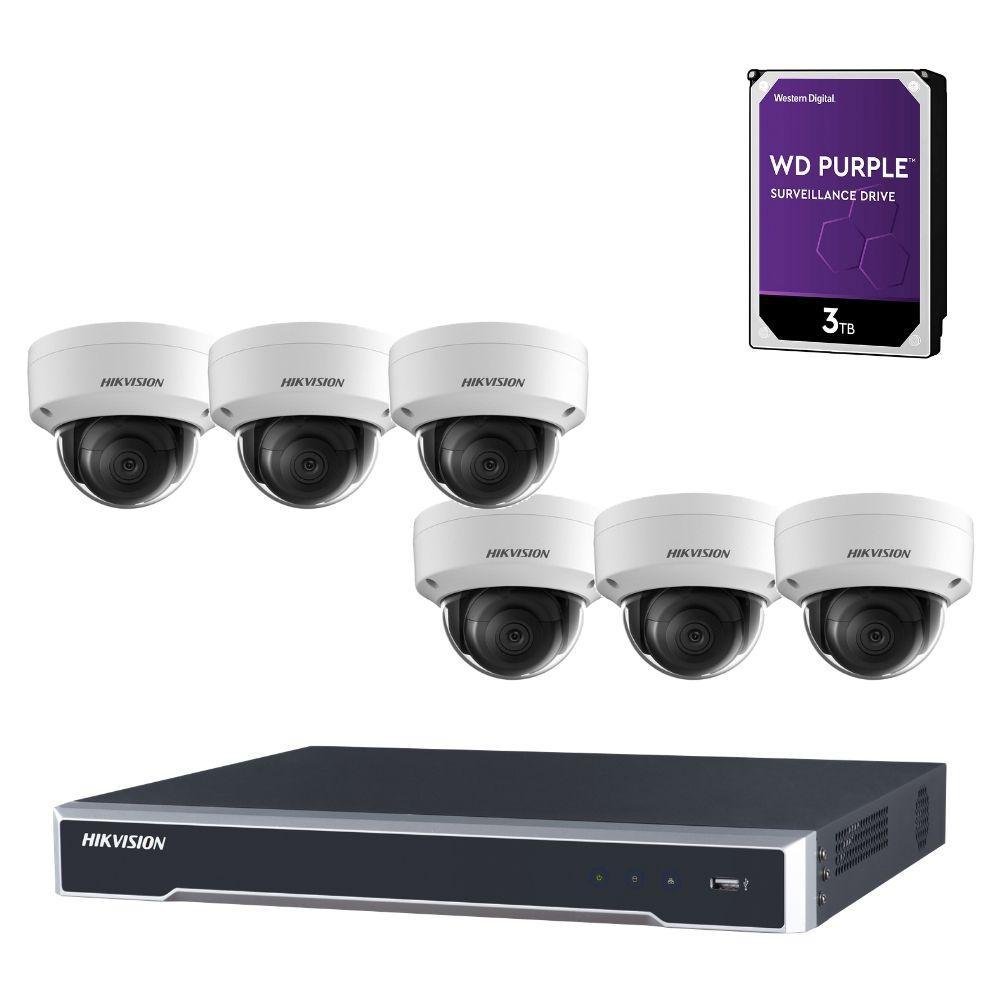

Hikvision 8 Channel Security Kit: 8MP(4K) NVR, 6 X 6MP Dome Cameras, 3TB HDD
$1,932.00
Part of Hikvision’s Easy IP 3.0 range of cameras, the DS-2CD2155FWD-I is a vandal proof outdoor IR dome camera that produces an exceptional 6MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% and 80%, respectively. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 30m visibility at night. Rigorously tested, Hikvision’s generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
KIT FEATURES:
- 6 x 6 Megapixel Fixed Lens Dome Camera with 3 Axis Adjustment 1/2.9" Progressive Scan CMOS
- Plug & Play setup with 8 independent PoE network interfaces
- 3 Terabyte WD Surveillance Hard Drive
- Smart search for the selected area in the video; and smart playback to improve the playback efficiency
- Supports H.265+ Compression & Triple Streaming
- 1 SATA Hard Drive Capacity - 6TB

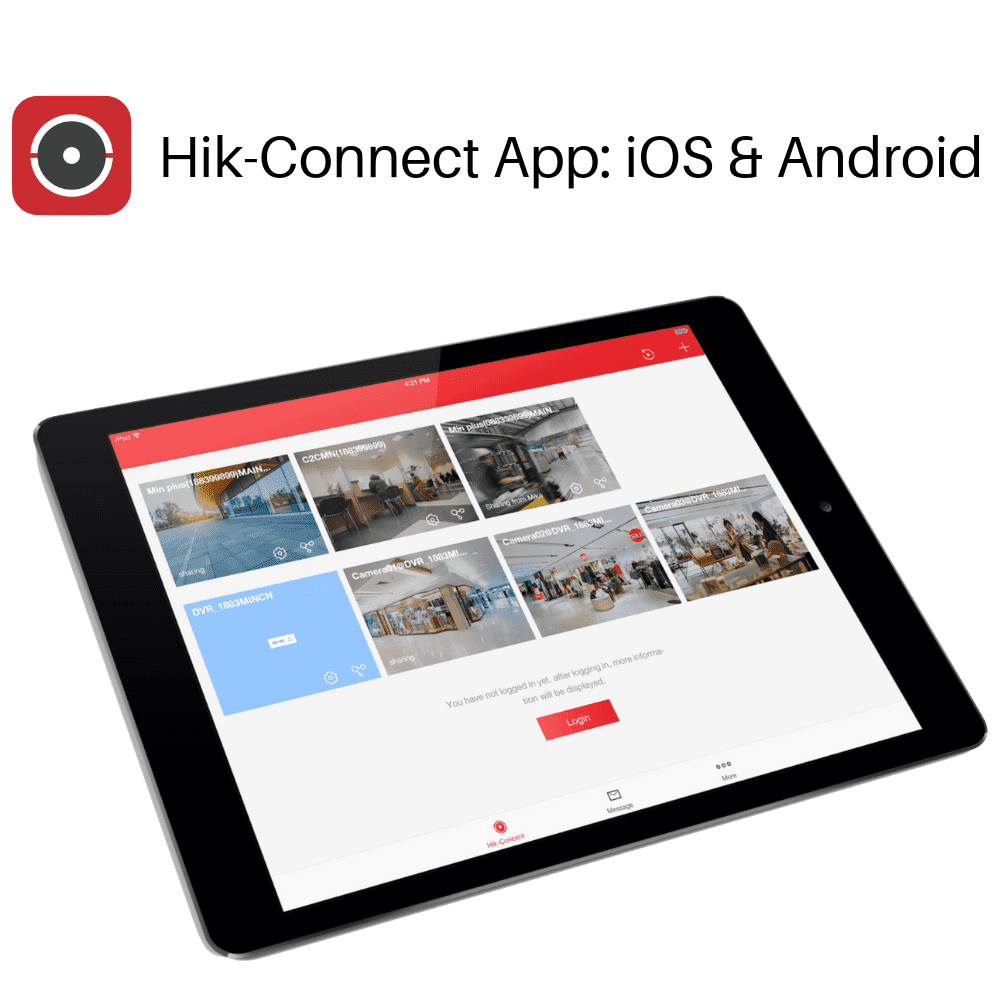

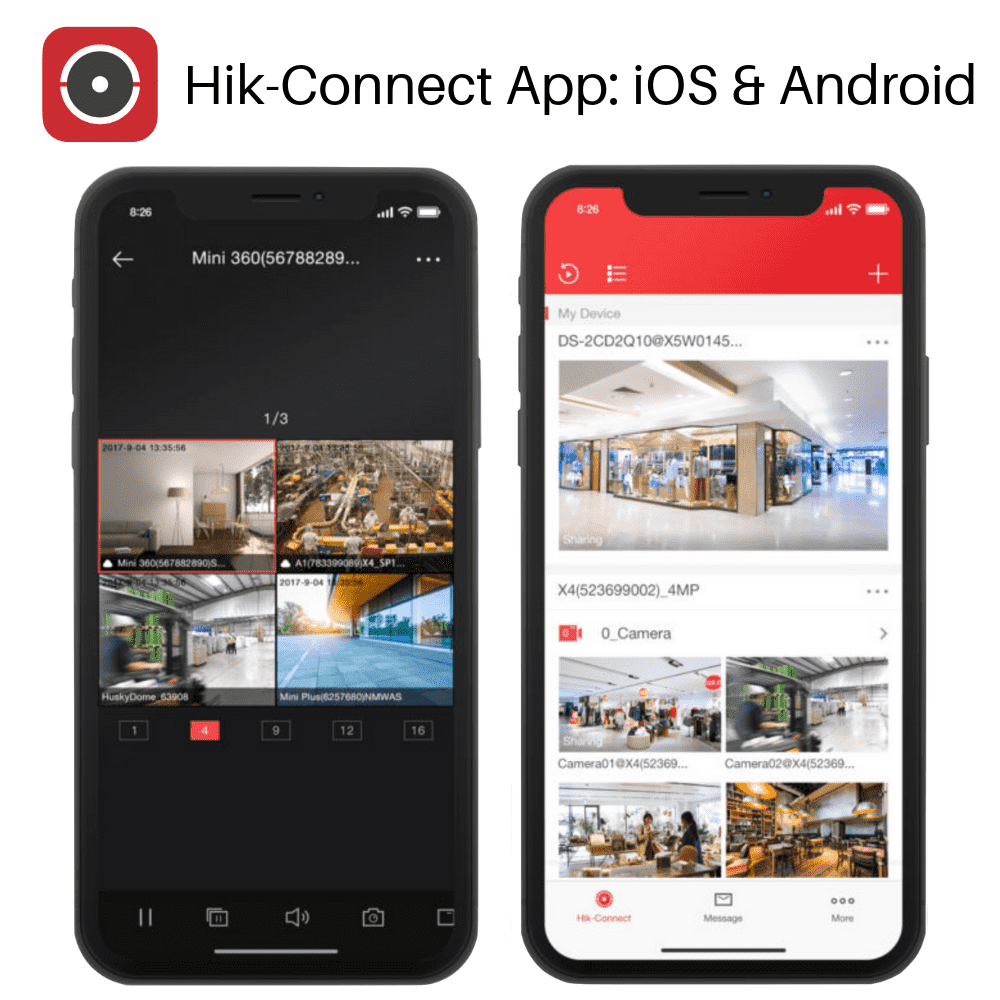

- Hik-Connect For Easy Network Management, Includes Live viewing On Smart Device For iOS/Android
- Motion detection, Video Tampering alarm, Region of Interest, Line Crossing Detection, Intrusion Detection, Unattended Baggage Detection, Object Removal Detection, Face Detection, Alarm Triggers
- Wide Dynamic Range 120dB WDR, Noise Reduction 3D DNR
- 30m Night Time Infrared Range, Auto Day/Night Switch IR Cut Filter
- DC12V & PoE (802.3af)
- Built-in micro SD/SDHC/SDXC card slot, NAS and ANR - Automatic Network Replenishment
- IP67 Weather Proof, IK10 Vandal Protection, Operating Conditions -30°C to +60°C
Tech Specs

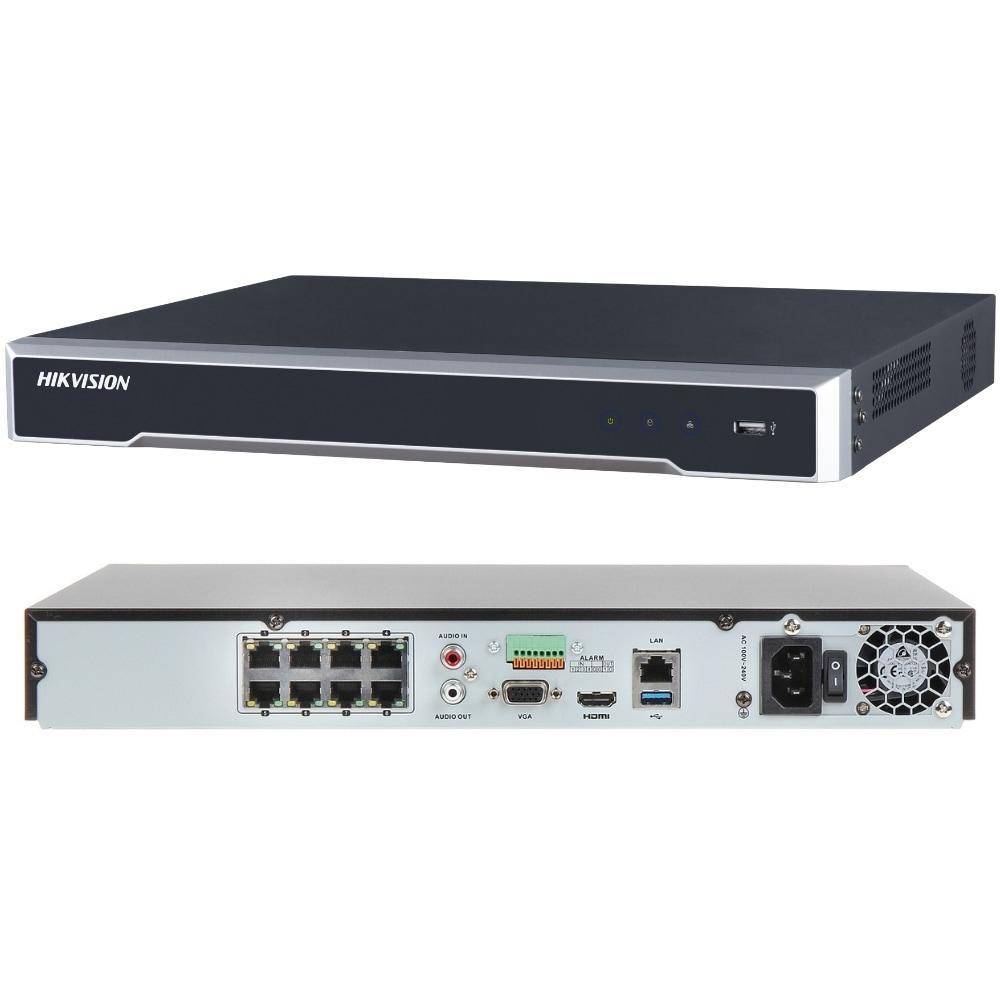

Hikvision 8 Channel 8MP (4K) NVR - HIK-DS-7608NI-K2/8P
| DS-7608NI-K2/8P | |
| VIDEO/AUDIO INPUT | |
| IP video input | 8-ch |
| Incoming bandwidth | 80 Mbps |
| Outgoing bandwidth |
160 Mbps |
| VIDEO/AUDIO OUTPUT | |
| HDMI output resolution | 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| VGA output resolution | 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
| Audio output | 1-ch, RCA (Linear, 1 KΩ) |
| DECODING | |
| Decoding format | H.265/H.265+/ H.264/H.264+/ MPEG4 |
| Recording resolution | 8MP/6MP/5MP /4MP/3MP/ 1080p/UXGA/ 720p/VGA/ 4CIF/DCIF/ 2CIF/CIF/ QCIF |
| Synchronous playback |
8-ch |
| Capability | 2-ch @ 4K, or 8-ch @ 1080p |
| NETWORK MANAGEMENT | |
| Network protocols | TCP/IP, DHCP, HIK Cloud P2P, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS |
| Hard disk | |
| SATA | 2 SATA interfaces |
| Capacity | Up to 6TB capacity for each HDD |
| EXTERNAL INTERFACE | |
| Two-way audio | 1-ch, RCA (2.0 Vp-p, 1kΩ) |
| Network interface | 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Alarm in/out | 4/1 |
| POE INTERFACE | |
| Interface | 8, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power | ≤ 120 W |
| Supported standard | IEEE 802.3 af/at |
| GENERAL | |
| Power supply | 100 to 240 VAC |
| Power | ≤ 180 W |
| Consumption (without hard disk) |
≤ 15 W (without enabling PoE) |
| Working temperature |
-10 to +55° C (14 to 131° F) |
| Working humidity | 10 to 90 % |
| Chassis | 385 mm chassis |
| Dimensions (W × D × H) | 385 × 315× 52 mm (15.2" × 12.4" × 2.0") |
| Weight (without hard disk) |
≤ 3 kg (6.6 lb) |

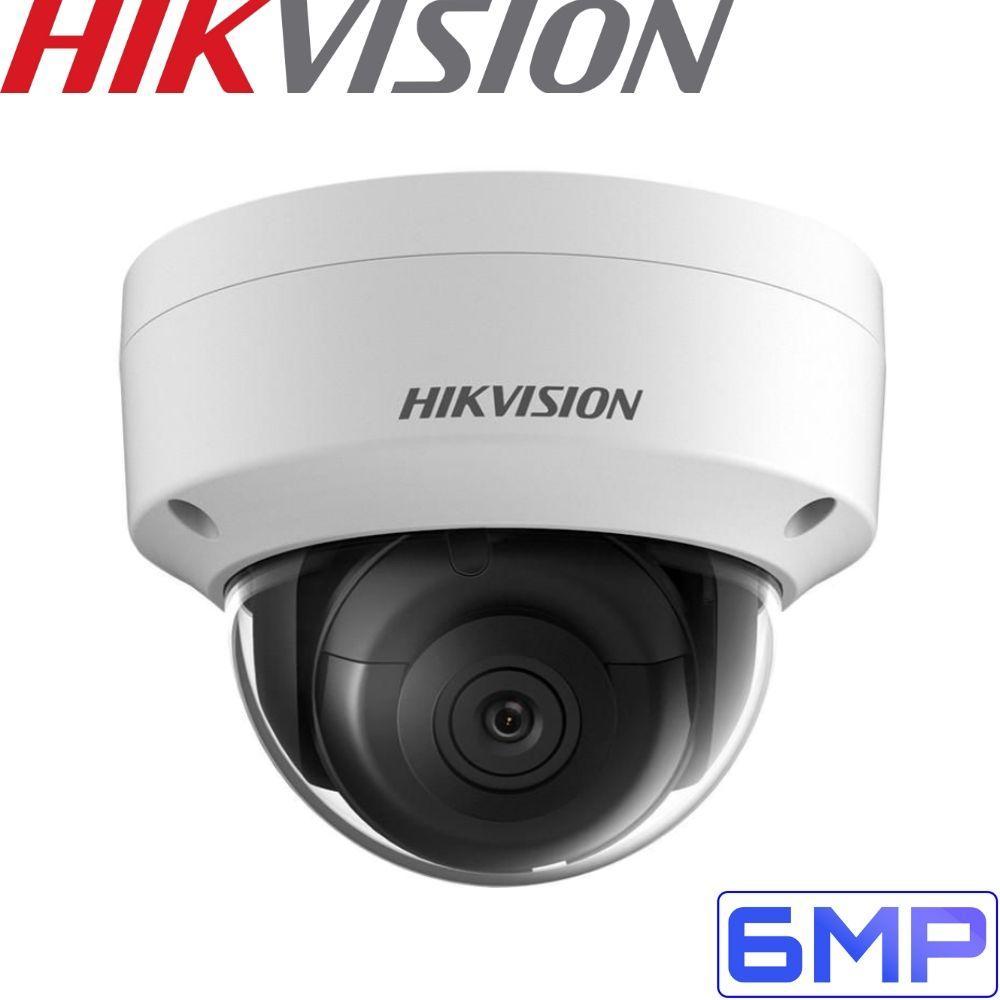

Hikvision 6MP Fixed Lens Dome Camera - DS-2CD2155FWD-I
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 lux @(F1.2, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Support |
| Lens | 2.8 mm, horizontal field of view: 97° 4 mm, horizontal field of view: 78° 6 mm, horizontal field of view: 60° 8 mm, horizontal field of view: 39.5° 12 mm, horizontal field of view: 19° |
| Lens Mount | M12 |
| Iris | F2.0 |
| Day &Night | IR cut filter |
| DNR | 3D DNR |
| Wide Dynamic Range | 120dB |
| 3-Axis Adjustment | Pan: 0° to 355° , tilt: 0° to 75°, rotate: 0° to 355° |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.264 Sub stream: H.265/H.264/ MJPEG Third stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Support |
| H.265 Type | Main Profile |
| H.265+ | Support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression (-S) | G.711/G.722.1/G.726/MP2L2/PCM |
| Audio Bit Rate (-S) | 64Kbps(G.711)/ 16Kbps(G.722.1)/ 16Kbps(G.726)/32-192Kbps(MP2L2) |
| Image | |
| Max. Resolution | 3072 x 2048 |
| Main Stream | 50Hz: 20 fps (3072 × 2048,3072 x 1728,2944 x 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20 fps (3072 × 2048,3072 x 1728,2944 x 1656), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1280 ×720, 640 × 360, 320 x 240) 60Hz: 30fps (1280 ×720, 640 × 360, 320 x 240) |
| Image Enhancement | BLC/3D DNR |
| Image Settings | Support rotate mode. Brightness, contrast, saturation, and sharpness are adjustable via web browser and client software |
| ROI (Region of Interest) | Support 1 fixed region for main stream and sub stream separately |
| Day/Night Switch | Auto/Scheduled/Alarm Triggered (-S) |
| Audio (-S) | |
| Environment Noise Filtering | Support |
| Audio I/O | Support, mono soundtrack |
| Sampling Rate | 8kHz/16kHz/32kHz/44.1kHZ/48kHz |
| Network | |
| Network Storage | Support microSD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR |
| Alarm Trigger | Motion Detection, Tampering Alarm, Network Disconnected, IP Address Conflict, Illegal Login, HDD full, HDD error |
| Protocols | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| Standard | ONVIF (PROFILE S, PROFILE G), ISAPI |
| General Function | One-key Reset, Anti-Flicker, Heartbeat, Mirror, Password Protection, Privacy Mask, Watermark, IP Address Filter |
| Interface | |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| Audio (-S) | 1 audio input (line in), 1 audio output interface |
| Alarm (-S) | 1 alarm input, 1 alarm output |
| On-board Storage | Built-in microSD/SDHC/SDXC slot, up to 128 GB |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Line Crossing Detection | Cross a pre-defined virtual line, up to 1 pre-defined virtual lines supported |
| Intrusion Detection | Enter and loiter in a pre-defined virtual region, up to 1 pre-defined virtual regions supported |
| Object Removal Detection | Objects removed from the pre-defined region, such as the exhibits on display. |
| Unattended Baggage Detection | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
| Face Detection | Human face appears in the image can be detected and trigger linkage method |
| General | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, 6.2 W PoE(802.3af, class 3), 9 W |
| IR Range | Up to 30 m |
| Protection Level | IP67, IK10 |
| Dimensions | Camera: Φ 111 × 82.4 mm (Φ 4.4″ × 3.2″) Package: 134 × 134 × 108 mm (5.27″ × 5.27″ × 4.25″) |
| Weight | Camera: 500 g (1.1 lb.) |
Videos
Hikvision Brand Video: See Far, Go Further
Downloads
Datasheets
Hikvision 8 Channel 4K NVR - HIK-DS-7608NI-K2/8P
Hikvision 6MP Fixed Lens Dome Camera - DS-2CD2155FWD-I-2
