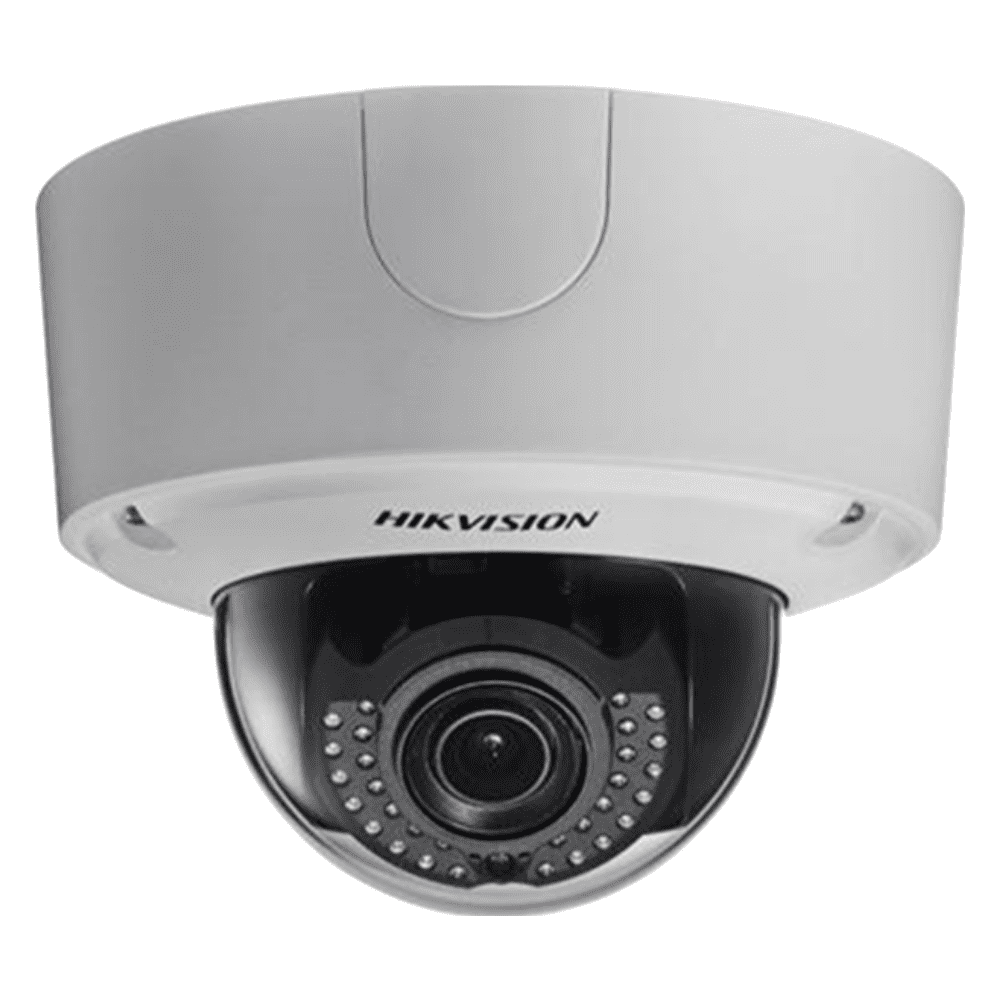

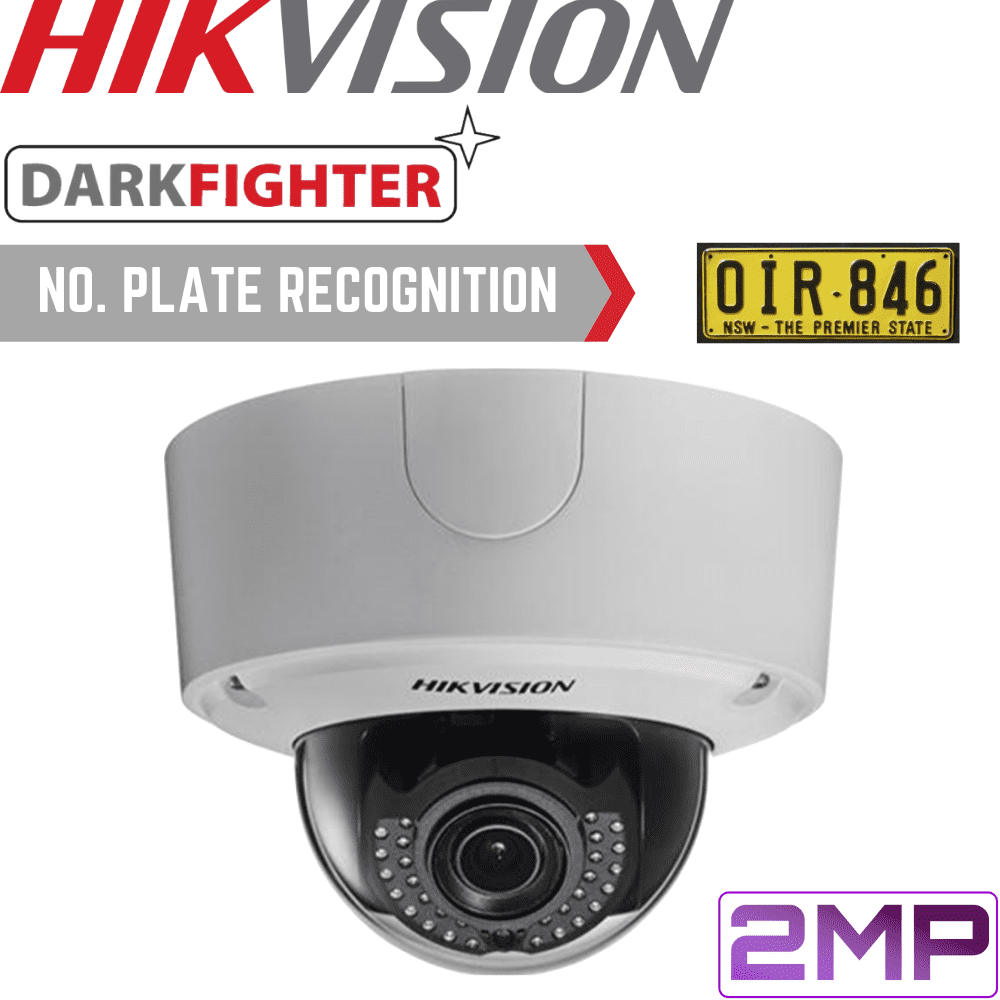

Hikvision DS-2CD4526FWDIZ/P Security Camera: 2MP ANPR Motorised VF Dome 2.8-12mm
$910.00
The Hikvision DS-2CD4526FWDIZ/P is a vandal proof dome camera with on-board ANPR analytics, this allows the camera to detect and recognise a vehicle's licence plate from a distance of up to 7 metres. The ANPR algorithm has been optimised for Australian number plates with 85% accuracy when installed correctly. The information collected is designed to then be sent through to an I-Series, Blazer Express NVR or HikCentral for access management. Powered by Hikvison's Darkfighter technology, this camera can capture a licence plate in low light and at high speeds of up to 80kmph. **SD Card required for ANPR
FEATURES
- 2 Megapixel Motorised Varifocal Dome Camera with 3 Axis Adjustment
- 2.8 to 12mm Motor-Driven Lens with Fast Auto Focus
- 1/1.8” Progressive Scan CMOS, 1080p @ 60fps frame rate
- ANPR - Automatic Number Plate Recognition -Create White List + Black List, Supports vehicles from both directions 2 lanes
- Darkfighter Technology - Full colour recording in extremely low light levels, as low as 0.002 Lux
- Supports H.264+/H.264/MJPEG Video Compression + Triple Streaming
- Motion Detection and Tampering Alarm
-
WDR Wide Dynamic Range 120dB, Noise Reduction 3D DNR, Defog, BLC - 40m IR Range with Smart IR, Auto Day/Night Switch
- Access cameras Live view on smart device via Hik Connect App for Android and iOS
- Supports DC12V & PoE (802.3at), Alarm I/O, Audio I/O for Audio Recording
- Built-in micro SD/SDHC/SDXC card slot, NAS, ANR - Automatic Network Replenishment
- IP67 Weather Proof, IK10 Vandal Proof + Anti-Surge & Smart Heater for starting in extra low temperatures
Tech Specs
Hikvision 2MP VF ANPR Dome Camera - DS-2CD4A26FWD-IZ(H)(S)/P
| Camera | |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON) B/W: 0.00027 Lux @ (F1.4, AGC ON), 0 Lux with IR" |
| Shutter Speed | 1 s to 1/100,000 s |
| Slow Shutter | Support |
| Auto-iris | DC drive |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| 3-Axis Adjustment | Pan: 0° to 355°, tilt: 0° to 70°, rotate: 0° to 355° |
| Lens | |
| Focal length | 2.8 to 12 mm |
| Aperture | F1.4 |
| FOV | Horizontal field of view: 90.1° to 31° |
| Lens Mount | Φ14 |
| IR(/White Light /Invisible IR) | |
| IR Range | Up to 40 m |
| Compression Standard | |
| Video Compression | Main stream: H.264/MPEG4 Sub stream: H.264/MPEG4/MJPEG Third stream: H.264/MPEG4/MJPEG |
| H.264 Type | Baseline Profile/Main Profile/High Profile |
| H.264+ | Support |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G.711/G.722.1/G.726/MP2L2 |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2) |
| Road Traffic and Vehicle Detection | |
| Accuracy | Capture Rate > 99% Recognition Rate > 98% |
| Vehicle Speed | Support vehicle speed under 120 km/h |
| Lane number | 2 lanes |
| Direction | Support capture and recognition of vehicles both approaching and leaving |
| Whitelist and Blacklist | Up to 2048 |
| Image | |
| Max. Resolution | 1920 × 1080 |
| Main Stream | 50Hz: 50fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (704 × 480, 640 × 480, 352 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Image Enhancement | BLC, defog, EIS, lens distortion correction, 3D DNR |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness, AGC and white balance adjustable by client software or web browser |
| Target Cropping | Support |
| Day/Night Switch | Auto/Schedule/Triggered by Alarm In |
| Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
| Network | |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6 |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI |
| Interface | |
| Audio | 1 audio input (line in/mic in), 1 audio output, mono soundtrack |
| Communication Interface | 1 RJ45 10M/100M Ethernet port |
| Alarm | 1 input, 1 output (up to 24 VDC 1 A or 110 VAC 500 mA) |
| Video Output | 1Vp-p composite output (75 Ω/CVBS) |
| On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 128 GB |
| Reset Button | Yes |
| Audio | |
| Environment Noise Filtering | Support |
| Audio Sampling Rate | Max. 48 kHz |
| General | |
| Operating Conditions | -30 °C to 60 °C (-22 °F to 140 °F), with –H model: -40 °C to 60 °C (-40 °F to 140 °F) Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 10%, 24 VAC ± 10%, terminal block PoE (802.3at, class 4) |
| Power Consumption and Current | 12 VDC, max. 14 W, 1.17 A; 24 VAC, max. 14 W, 0.58 A; PoE (802.3at, 42.5V-57V), max. 14 W, 0.33 A to 0.24 A With –H model: 12 VDC, max. 17 W, 1.42 A; 24 VAC, max. 17 W, 0.71 A; PoE (802.3at, 42.5V-57V), max. 17 W, 0.40 A to 0.29 A |
| Heater | With –H model supports |
| Protection Level | IP67, IK10 |
| Dimensions | Φ164.9 × 127 mm (Φ6.49″ × 5″) |
| Weight | Approx. 1320 g (2.91 lb) With package: 2100 g (4.63 lb) |
