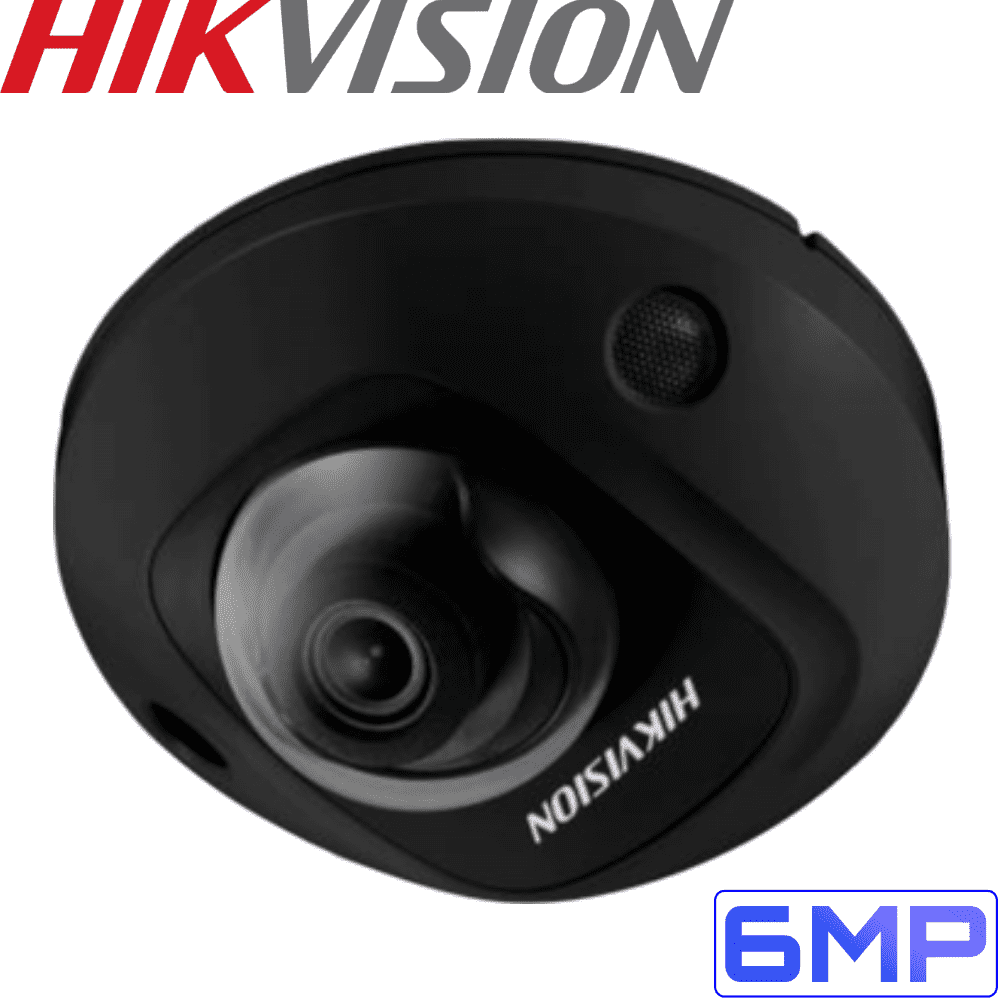

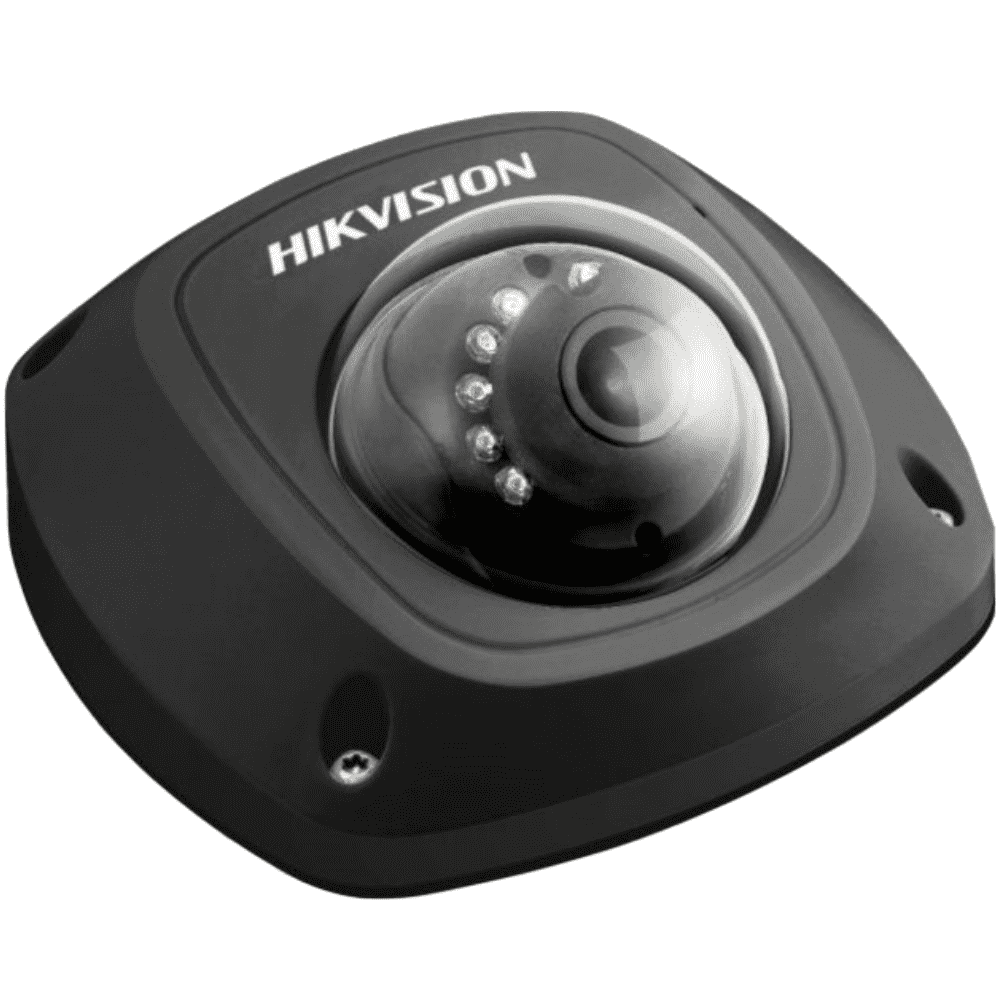

Hikvision DS-2CD2555FWD-I BLACK Security Camera: 6MP Mini Dome Black, WiFi, 4mm
$255.00
$286.00
You Save 10% (
$31.00
)
Part of Hikvision's easy IP 3.0 range of cameras, the DS-2CD2555FWD-I-4-BLACK is an outdoor IR mini dome camera that produces an exceptional 6MP high-resolution video. Powered by the latest innovation in image sensor technology and an ultra high definition image processing chipset from Amberella, it supports H.265 and H.265+ intelligent video compression, which reduces bandwidth/storage requirements by up to 50% to 80%. Providing an ideal combination of smart features and affordability, the camera includes 120dB true wide dynamic range (WDR) and built-in EXIR 2.0 infrared technology providing up to 10m visibility at night. With a 4mm lens, this camera provides a horizontal field of view of 78 degrees. Rigorously tested, Hikvision's generation cameras have been designed to deliver 24/7 video surveillance with the clarity you expect from a Hikvision network camera.
FEATURES
- 6 Megapixel Mini Dome Camera with 3 Axis Adjustment, 1/2.9" Progressive Scan CMOS
- Shadow Series: Black
- Fixed Lens: 4mm
- Supports H.265+ Compression & Triple Streaming
- Smart Detections/Alarm Triggers - Face Detection, Intrusion Detection, Line Crossing Detection, Motion Detection, Video Tampering, unattended baggage detection, object removal detection
- Wide Dynamic Range 120dB, Noise Reduction 3D DNR
-
10m EXIR Infrared Range, Auto Day/Night Switch
- Access your cameras Live view on smart device via Hik Connect App for Android and iOS
- Supports NAS & Micro SD Card Storage, ANR - Automatic Network Replenishment
- DC12V & PoE (802.3af),
- WiFi Optional - Range 50m
- IP66 Weather Proof Cameras, IK08 Vandal Resistant, TVS 2000V Lightning Protection, Surge Protection
Tech Specs
Hikvision 6MP Mini Dome Camera - DS-2CD2555FWD-I-4-BLACK
| Camera | |
| Image Sensor | 1/2.9" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR; Color: 0.028 lux @(F2.0, AGC ON), 0 lux with IR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Slow Shutter | Yes |
| Day & Night | IR Cut Filter |
| Digital Noise Reduction | 3D DNR |
| WDR | 120dB |
| 3-Axis Adjustment | Pan: -30° to +30°, tilt: 0° to 75°, rotate: 0° to 360° |
| Lens | |
| Focal length | 2.8, 4, 6 mm |
| Aperture | F2.0 |
| FOV | 2.8 mm: Horizontal field of view: 97°, Vertical field of view: 54°, Diagonal field of view: 113° 4 mm: Horizontal field of view: 78°, Vertical field of view: 42°, Diagonal field of view: 92° 6 mm: Horizontal field of view: 60°, Vertical field of view: 33°, Diagonal field of view: 71° |
| Lens Mount | M12 |
| IR | |
| IR Range | Up to 10 m |
| Wavelength | 850nm |
| Compression Standard | |
| Video Compression | Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| H.264 Type | Main Profile/High Profile |
| H.264+ | Yes |
| H.265 Type | Main Profile |
| H.265+ | Yes |
| Video Bit Rate | 32 Kbps to 16 Mbps |
| Audio Compression | G722.1/G711ulaw/G711alaw/G726/MP2L2/PCM |
| Audio Bit Rate | 64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2) |
| Smart Feature-set | |
| Behavior Analysis | Line crossing detection, intrusion detection, unattended baggage detection, object removal detection |
| Face Detection | Yes |
| Region of Interest | Support 1 fixed region for main stream and sub-stream separately |
| Image | |
| Max. Resolution | 3072 × 2048 |
| Main Stream | 50Hz: 20fps (3072 × 2048,3072 x 1728,2944 x 1656), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60Hz: 20fps (3072 × 2048,3072 x 1728,2944 x 1656), 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
| Sub Stream | 50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240) |
| Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 320 x 240) 60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 320 x 240) |
| Image Setting | Rotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser |
| Image Enhancement | BLC/3D DNR |
| Day/Night Switch | Auto/Schedule/Day/Night/Triggered by Alarm In |
| Network | |
| Network Storage | Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR |
| Alarm Trigger | Motion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login |
| Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, QoS, IPv6 |
| General Function | One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter |
| API | ONVIF (PROFILE S, PROFILE G), ISAPI |
| Simultaneous Live View | Up to 6 channels |
| User/Host | Up to 32 users 3 levels: Administrator, Operator and User |
| Client | iVMS-4200, Hik-Connect, iVMS-5200 |
| Web Browser | IE8+, Chrome 31.0-44, Firefox 30.0-51, Safari 8.0+ |
| Interface | |
| Audio (-S model) | 2 Inputs: Line in (3.5 mm) or Mic in (built-in microphone), 1 Output: Line out (3.5 mm), mono sound |
| Alarm (-S model) | 1 Input: Alarm in (3.5mm), 1 Output: Alarm out (3.5mm) |
| Communication Interface | 1 RJ45 10M/100M self-adaptive Ethernet port |
| On-board storage | Built-in Micro SD/SDHC/SDXC slot, up to 128G |
| SVC | Support H.264 and H.265 encoding |
| Wi-Fi | |
| Wireless Standards | IEEE 802.11b/g/n |
| Frequency Range | 2.412 GHz to 2.4835 GHz |
| Channel Bandwidth | 20M/40M |
| Protocols | 802.11b: DQPSK, DBPSK, CCK 802.11g/n: OFDM /64-QAM,16-QAM, QPSK, BPSK |
| Security | WPA, WPA2 |
| Transfer Rates | 11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps |
| Wireless Range | 50 m |
| Audio | |
| Environment Noise Filtering | Yes |
| Audio Sampling Rate | 16 kHz, 32kHz, 44.1kHz, 48kHz |
| General | |
| Operating Conditions | -30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing) |
| Power Supply | 12 VDC ± 25%, PoE (802.3af, class 3) |
| Power Consumption and Current | 12 VDC, 0.625A, max. 7.5W PoE (802.3af, 36V to 57V), 0.26 A to 0.17 A, max. 9.5W |
| Protection Level | IK08, IP66 TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Front cover: plastic , Bottom base: metal |
| Dimensions | Φ110 mm × 56.4 mm (Φ4.33" × 2.22") |
