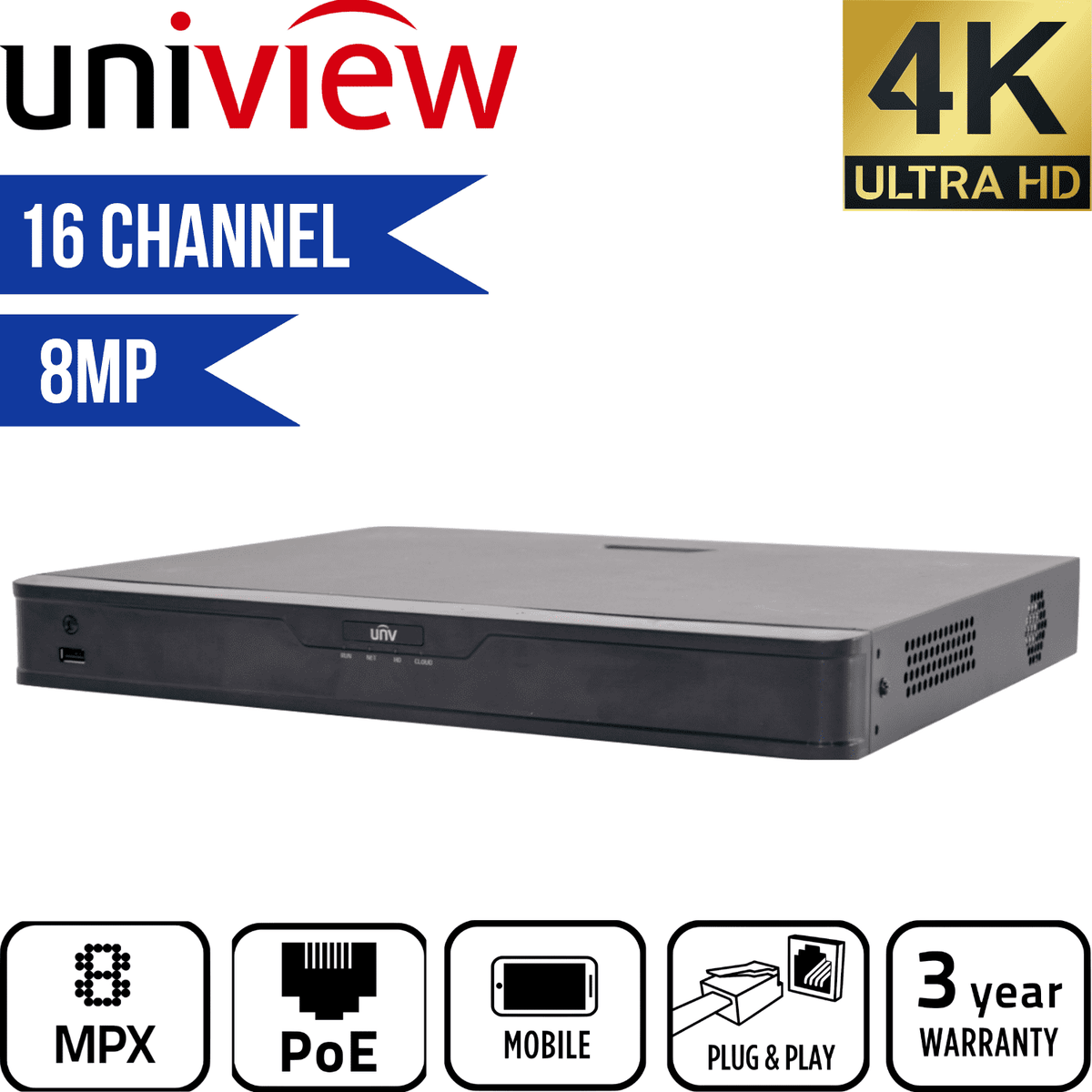

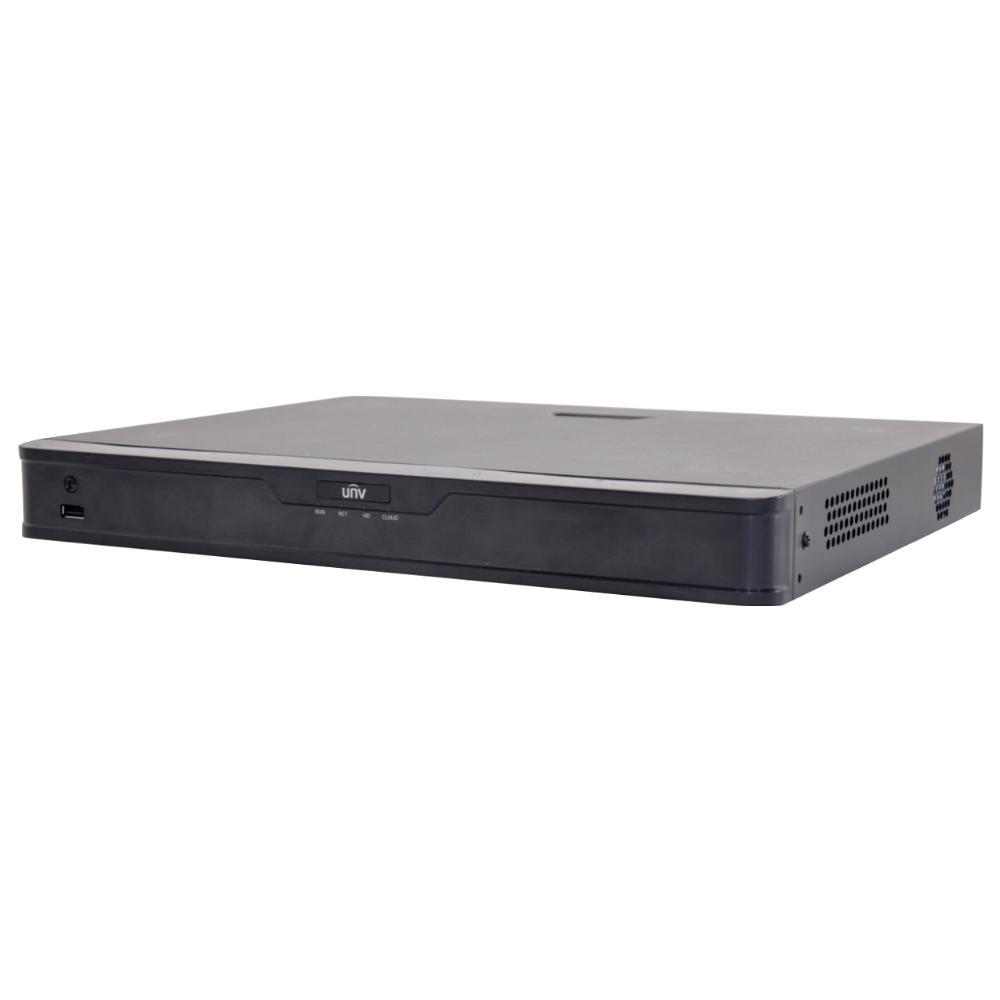

Uniview 16 Channel Network Video Recorder: 8MP (4K) Ultra HD

$480.00

Start building your new home or business security system with Univiews 16 Channel Network Video Recorder (NVR302-16S-P16). It can support high resolution cameras up to 8 megapixels (4K) resolution. Features 16 POE interfaces for easy plug-and-play set up and can support third party cameras thanks to ONVIF conformance. Also supports Ultra 265 and H.265 video compression. In-built smart detections include face detection, cross-line detection and people counting.

FEATURES

16 Channels and up to 8 Megapixels (4K) resolution recording
16 independent POE+ network interfaces for plug and play set up
Support cloud upgrade
Third-party IP cameras supported with ONVIF conformance
Support 1-ch HDMI, 1-ch VGA, HDMI at up to 4K(3840x2160) resolution simultaneous output
Incoming Bandwidth: 112Mbps, Outgoing Bandwidth: 96Mbps
Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, People Counting Statistical Analysis
ANR technology for backup storage option when network is disconnected
4 channel alarm input/1 channel alarm output
2 SATA HDDs, up to 10TB for each HDD
Supports PoE+ (Long Distance POE up to 260 - 300 metres)
Support Ultra 265/H.265/H.264 video formats compression

More Info

UNIVIEW 16 CHANNEL 8MP (4K) NVR - NVR302-16S-P16

This 16 channel network video recorder can record in up to 8 Megapixel resolution. It also supports mobile client access, so you can access your Live camera footage through a smart device, using the EZ View app.

This NVR can support Visual Content Analysis VCA smart functions as well as search and statistical analysis functions with compatible cameras. They include Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking, Face search, Behaviour search and People counting.

Back Up Storage

ANR - When the connection between cameras and network video recorder is disrupted, the system can back up to a second storage option on the camera, like an SD card. When the connection is restored again all the footage recorded on the SD card will be automatically transferred to back to the NVR. This is known as ANR (Automatic Network Replenishment). This model NVR supports ANR.

4TB SEAGATE SKYHAWK HARD DRIVES - SG-ST4000VX007

Built to record 90% of the time — supports up to 64 cameras
Up to 10 TB or 2,000+1 hours of HD video
180 TB/year workload rating, 3× the workload of a desktop drive and backed by a 3-year limited warranty
NVR ready drives deliver robust drive design for multi-drive environments

Tech Specs

Uniview 16 Channel 8MP (4K) Network Video Recorder - NVR302-16S-P16

NVR302-16S-P16
Video/Audio Input
IP Video Input	16-ch
Two-way Audio Input	1-ch, RCA
Network
Incoming Bandwidth	112Mbps
Outgoing Bandwidth	96Mbps
Remote Users	128
Protocols	P2P, UPnP, NTP, DHCP, PPPoE
Video/Audio Output
HDMI/VGA Output	VGA: 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50,1920X1080@60 HDMI: 4k(3840x2160@30), 4k(3840x2160@60), 1024X768@60, 1280X720@60, 1280X1024@60, 1920X1080@50, 1920X1080@60
Recording Resolution	8MP/6MP/5MP/4MP /3MP/1080p/960p/ 720p/D1/2CIF/CIF
Audio Output	1-ch, RCA
Synchronous Playback	16-ch
Corridor Mode Screen	3/4/5/7/9/10/12/16
Decoding
Decoding format	Ultra265/H.265/H.264
Live view/ Playback	8MP/6MP/5MP/4MP/ 3MP/1080p/960p/ 720p/D1/2CIF/CIF
Capability	1 x 4K@30, 2 x 4MP@30, 3 x 3MP@25, 4 x 1080P@30, 8 x 720P@30,16 x D1
Hard Disk
SATA	2 SATA interfaces
Capacity	up to 8TB for each disk
Smart
VCA Detection	Face detection, Intrusion detection, Cross line detection, Audio detection, Defocus detection, Scene change detection, Auto tracking
VCA Search	Face search, Behavior search
Statistical Analysis	People counting
External Interface
Network Interface	1 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
USB Interface	Front panel: 1 x USB2.0, Rear panel: 1 x USB2.0
Alarm In	4-ch
Alarm Out	1-ch
PoE
Interface	16 independent 100Mbps PoE network interfaces
Max Power	Max 30W for single port Max 240W in total ( 15W for each )
Supported Standard	IEEE 802.3af/at
General
Power Supply	220V AC Power Consumption: ≤9 W( without HDD )
Working Environment	-10°C ~ + 55°C ( +14°F ~ +131°F ), Humidity ≤ 90% RH(non-condensing)
Dimensions(W× D×H)	380mm ×315mm × 49.1mm(15.0" × 12.4" ×1.9" )
Weight ( without HDD )	≤2.4kg (5.29 lb)
