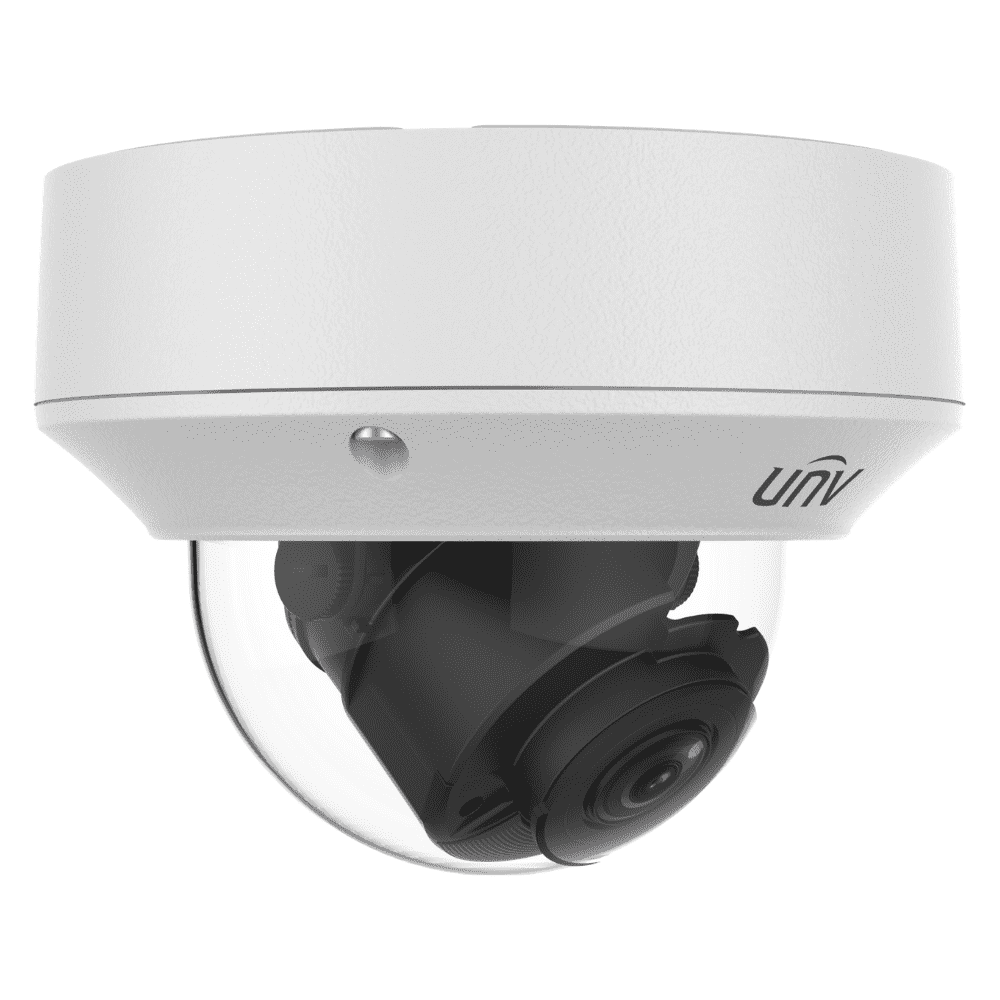

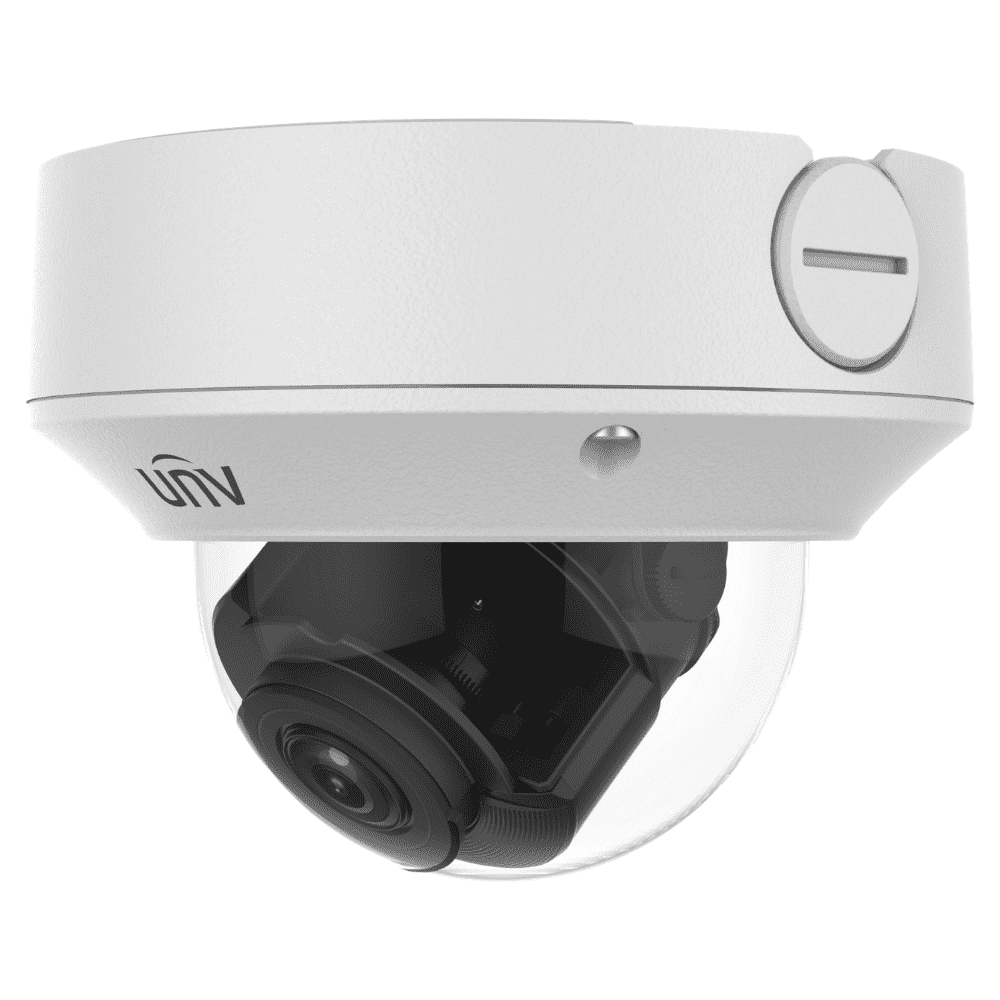

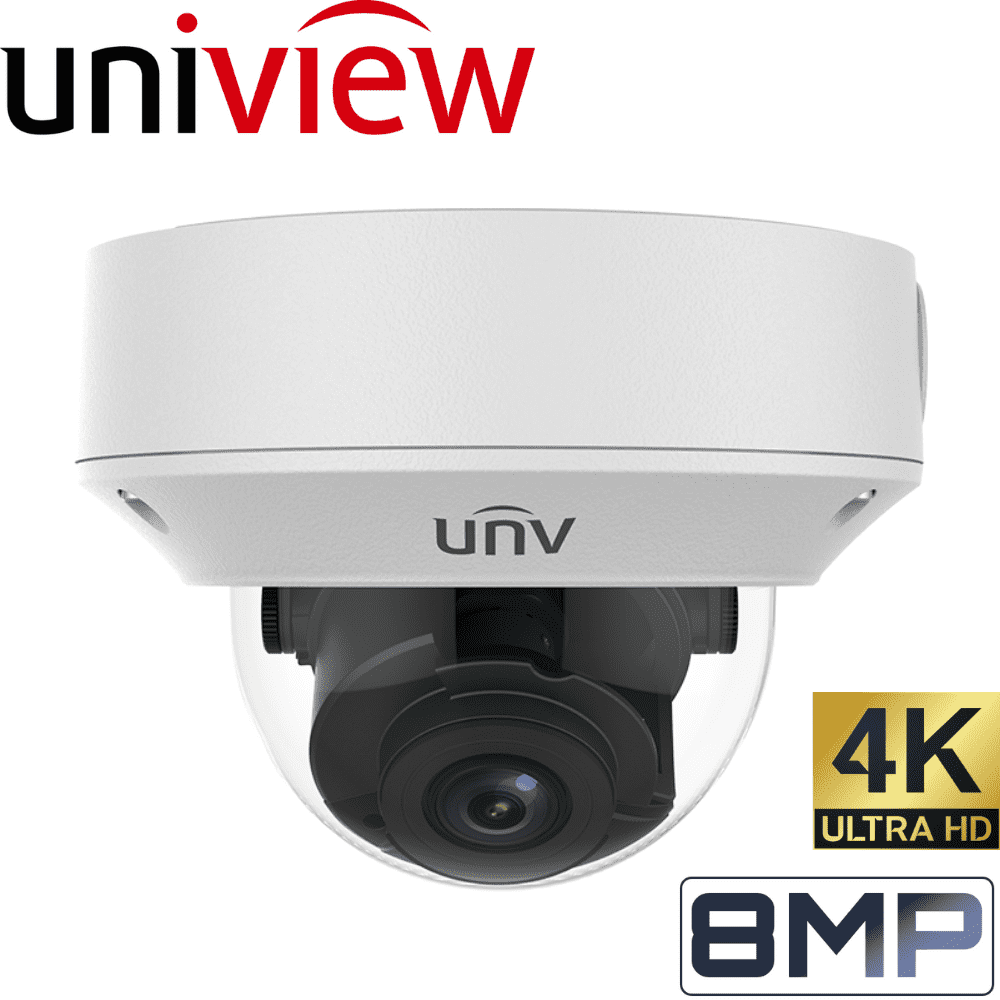

Uniview Security Camera: 8MP (4K) Motorised Varifocal Dome 2.8~12mm

Designed by Uniview, a leading innovator in the surveillance industry, this 8 megapixel motorised varifocal IP camera is the perfect addition to your surveillance system. It comes with outstanding high clarity resolution, infrared night vision and an advanced, embedded smart algorithm with inbuilt smart detections that make it easy to monitor, detect and alert you of intrusions. Image optimisation technology such as WDR and 3D DNR actively minimise noise and balances light. The camera is compatible with most 3rd party digital video recorders and supports power-over-ethernet for simple plug-and-play set up. It can be installed outdoors thanks to its IP67 weatherproof and IK10 vandal-proof construction.

FEATURES

• 8 Megapixel (8MP) Motorised Zoom Lens 2.8~12mm, AF automatic focusing lens) IR Dome Camera
• Supports Power Over Ethernet POE + Built-in PoE splitter that outputs DC 12V
• Embedded Smart Algorithm
• Supports Ultra 265/H.265/H.264 video formats compression - Triple Streams
• Smart Detections include Face Detection, Intrusion Detection, Cross-Line Detection, People Counting, Defocus Detection, Motion Detection, Scene Change Detection, Audio Detection
• Alarm I/O, Audio I/O
• Edge Storage Micro SD up to 128GB & ANR Network Replenishment
• 120 dB Optical WDR (Wide Dynamic Range), 2D/3D DNR (Digital Noise Reduction), ROI, 9:16 corridor mode, Digital Defog
• Smart IR night vision, up to 30m IR distance with auto cut IR filter
• IP67 Weatherproof, IK10 Vandal-proof, Wide Temperature -40C to +60C

More info

Easy Set-up

• POE Power Over Ethernet - No need for power sockets for each camera. Both power and video transmission are provided through one single ethernet cable from NVR to camera, making installation fast and easy.

• DC12V Output - No need for extra cable to run a microphone, light or siren. Camera's with the Building Pack have DC12V output built into the camera so no need for an additional power supply.

Optics

• Day/night functionality - Designed to operate just as good in total darkness as well as light.
• Motorised Zoom - With built-in varifocal motorised lenses you can control zoom functions on the camera remotely.
• Smart IR night vision, up to 30m (98 ft) IR distance

• Smart IR - Works by auto balancing infrared over-exposure which can be produced when the object gets too close to the camera at night.

• IR Cut Filter - Automatically makes the transition from night to day, or from infrared night mode to daylight recording.

• Up to 120 dB Optical WDR(Wide Dynamic Range) - Enables balanced lighting across the entire video image in unstable lighting conditions, such as when the background is bright and the foreground is dark.
• 2D/3D DNR (Digital Noise Reduction) - Digital Noise Reduction (DNR) is a method by which the camera's imager digitally removes noise from the image. 3D DNR is an advancement of this technology which enables noise to be filtered even more effectively from the image, even in low light conditions.

• Digital Defog - Developed with laser infrared, it actively penetrates fog whether natural or man-made to reproduce details perfectly.

Compression

• Ultra 265, H.265, H.264, MJPEG - U-code is an innovation developed by Uniview as an enhanced encoding technology to reduce the bitrate of H.265 even further, calling it ultra 265. It does deep compression separating moving targets and static backgrounds. Ultra H.265 reduces bandwidth and storage an incredible 50%-95% over standard H.264/H.265.
• Embedded smart algorithm
• Triple streams - You have the ability to set multiple, independent video streams simultaneously from the IP camera. Each stream can be set at different frame rates, resolution and quality level, ideal if you require remote viewing over a limited-bandwidth connection, but want to retain the highest resolution for recording and local viewing. Triple streams give much more flexibility to users.
• ROI (Region of Interest) - ROI is an intelligent video innovation designed to maximise image quality, network bandwidth and storage capacity. The system will monitor a specific, allocated region in full high definition, such as number plates or faces, while lowering resolution in less important parts of the image, for example the sky.
• 9:16 corridor mode - For narrow, vertical scenarios such as hallways, that reduces wasted video compression, transmission and storage. The 9:16 aspect ratio rotates the image by 90 degrees and reduce the proportion of blank walls in the picture allowing the camera to focus on the most valuable areas—the doorway.
• Customised OSD (On Screen Display) - The text displayed on the screen with video images and may include time and other customised content.

Network

• ONVIF Conformance - Onvif (Open Network Video Interface Forum) refers to the camera’s compliance to a global open standard for the interface of IP cameras and how they communicate with each other.

Structure

• Wide temperature range: -35°C to 60°C (-31°F to 140°F)
• Wide voltage range - Uniview products are designed to handle fluctuations in voltage of +-25% Typically its only +-10% with competitor products.
• IP67 - Cameras are sealed against extreme weather, water and dust.
• IK10 - Vandal protection rating. Protected against 20 joules of impact (the equivalent to the impact of a 5kg mass dropped from 400mm above the impacted surface)

Back Up Storage

• ANR and Edge Storage - Thanks to this backup storage option the cameras have the ability to automatically record to micro SD card when the network connection is disrupted between NVR and cameras. When the connection is restored the footage is automatically transferred from the SD card back to the NVR as though there was no disruption. This is known as ANR (Automatic Network Replenishment). All cameras in the Building Kit are ANR and micro SD card compatible.

Intelligence

• Face detection - The camera takes a snapshot of the face and stores it in the NVR. When you need to identify a person the system will take you to the specific moment the person appeared on the screen.
• Intrusion Detection - You can draw a box or an area of interest within the screen for the camera to monitor. When the camera identifies an intrusion it will prompt the NVR to send you an email or notification with snapshots.
• Scene Change - The camera can identify if it is being tampered with if there is a change in scenery it is actively monitoring. It will be prompted to send you an email with snapshots of the incident.
• Cross Line Detection - Similar to intrusion by drawing lines, however this works best for identifying point A to point B intrusion. For example, a car may be permitted to enter an area from point A but prohibited to exit at point B. The system will only alert you if both point A and point B are triggered in that order.
• People Counting - Pointed at a door (or by drawing a line) the camera will count person by person. It can also identify how many people enter and how many exit. You can review the results by specific time periods on a graph. Suitable for stores or places with high traffic.
• Defocus Detection - The camera can detect when it is out of focus and alert you.
• Audio Detection - An audio detection alarm occurs when a camera detects a sudden change in sound volume.

Tech Specs

Uniview 8MP Motorised Varifocal Dome Camera 2.8-12mm - IPC3238SR3-DVPZ
