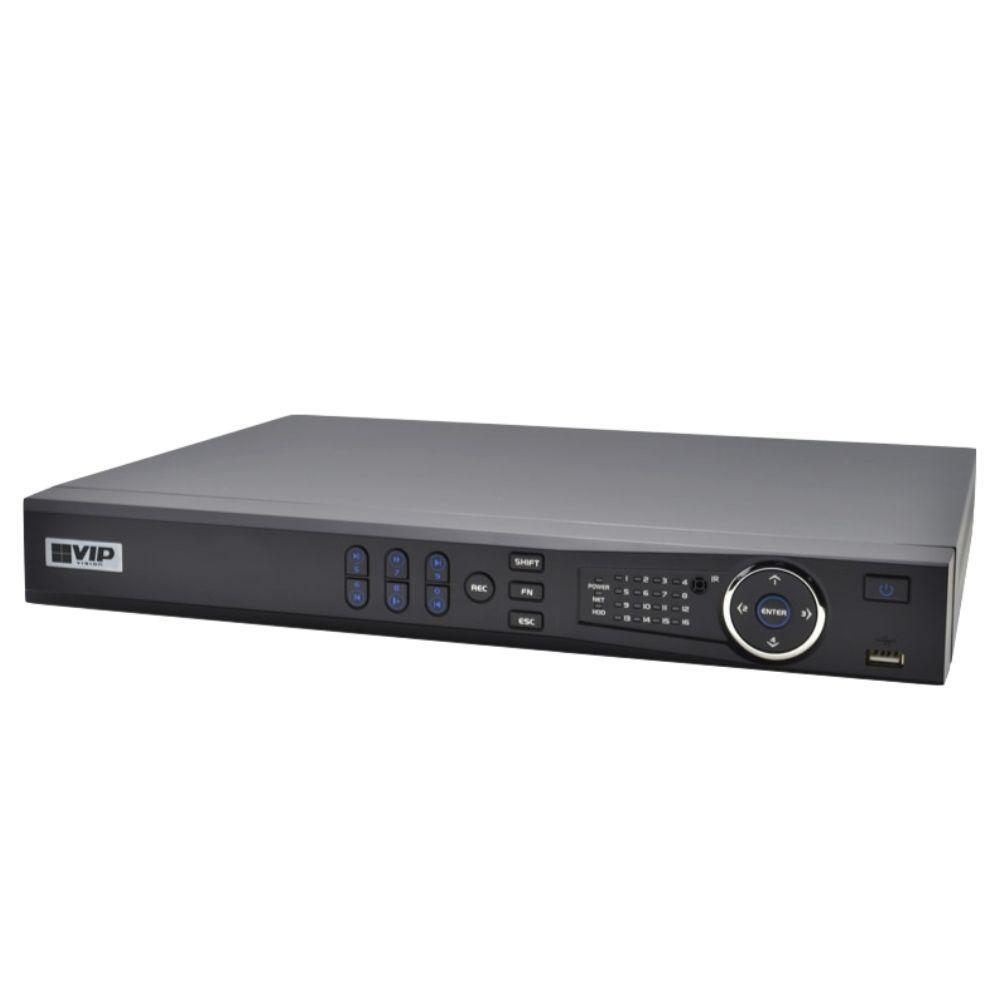

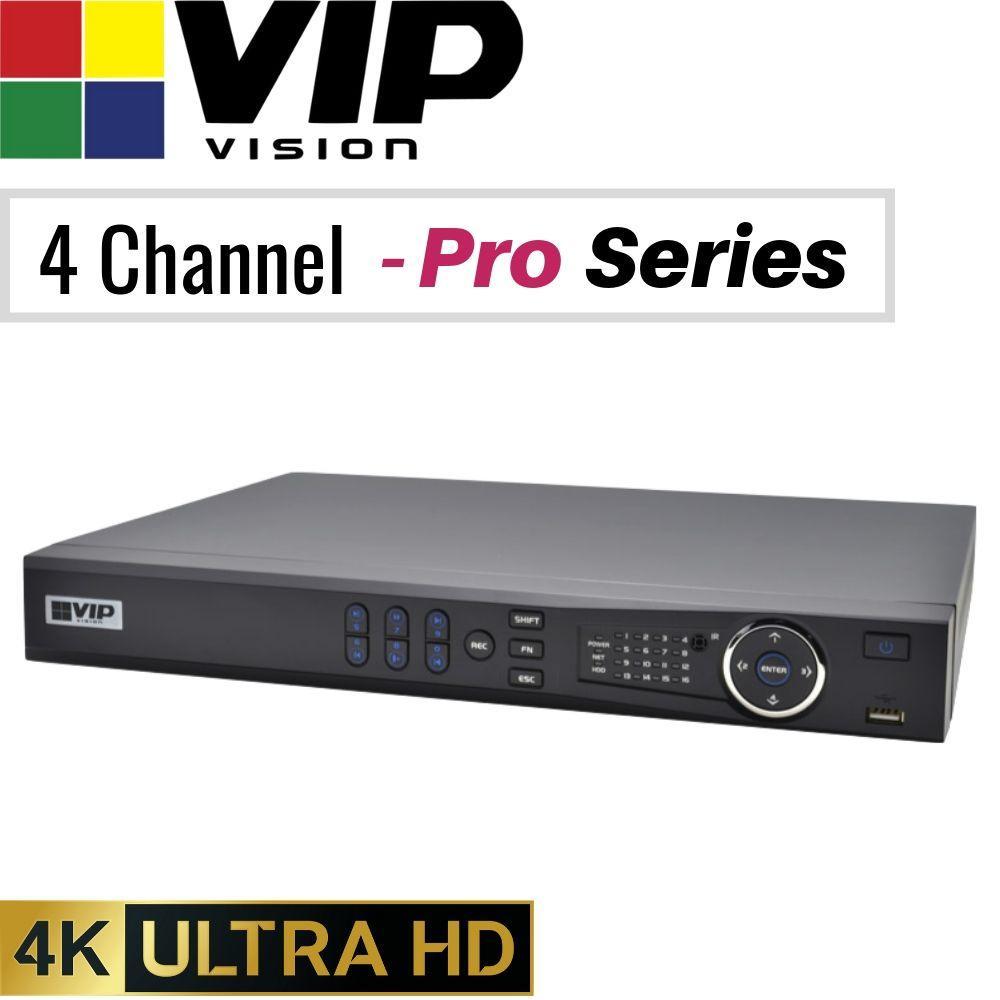

VIP Vision Pro 4 Channel Network Video Recorder: 8MP (4K) Ultra HD
$415.00
The VIP Vision™ Professional Series 4 channel NVR4PRO3 features recording in Ultra HD/8.0MP (3840 x 2160), live view in Ultra HD, and support for H.265 video compression. This makes it the smallest, most efficient and most affordable Ultra HD recording solution, perfect for homes and small businesses.
PRODUCT FEATURES
PRODUCT FEATURES
- Record Ultra HD/8.0MP (3840 x 2160)
- 4CH NVR with 4 Power over Ethernet (PoE) ports
- Up to 200Mbps incoming bandwidth
- Supports H.265 video compression
- 2 x SATA ports up to 10TB, max. 20TB HDD capacity
- Remote view in seconds with setup via QR code
- Native Ultra HD live view on 4K monitors via HDMI
- Backup footage via network or USB device
- Supports real-time viewing & recording via your phone/tablet.
Tech Specs
| General | |
| Main Processor | Quad-core embedded processor |
| Operating System | Embedded Linux |
| Video Input | 4 channels |
| Two-way Talk | 1 channel input, 1 channel output, RCA |
| Interoperability | ONVIF 2.4, CGI conformant |
| Display | |
| Video Output | 1 x HDMI, 1 x VGA |
| Display Resolution | Configurable from 3840 x 2160 to 1024 x 768 |
| Display Split | 1/4 |
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording |
| Recording | |
| Recording Resolution | Configurable from 8.0MP (3840 x 2160) to CIF (352 x 288) |
| Incoming Bandwidth | 200Mbps |
| Video Compression | H.265 / H.264 |
| Bit Rate | 16kbps ~ 20Mbps per channel |
| Record Modes | Manual / Schedule (Regular [Continuous], Motion Detection, Alarm) / Stop |
| Record Interval | 1~120 min (default: 60 min) / Pre-record: 1~30s / Post-record: 10~300s |
| Features | |
| Alarm Input / Output | 4 channels input / 2 channels relay output (N.O/N.C) |
| Trigger Events | Recording, PTZ, Tour, Alarm, Video Push, Email, FTP, Snapshot, Buzzer, Screentips |
| Video Detection | Motion Detection, Motion Zones: 396 (22 x 18), Video Loss & Tampering |
| Playback Sync | 1/4 |
| Search Modes | Time/Date, Alarm, Motion Detection, Exact Search (to the second), Smart Search |
| Backup Modes | USB Device / Network |
| Network | |
| Ethernet | 1 x RJ-45 port (10/100/1000Mbps) |
| Power over Ethernet | 4 ports (IEEE802.3at/af) |
| Network Functions | HTTP, TCP/IP, IPv4/IPv6, UPNP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPOE, DDNS, FTP, Alarm Server, IP Search, P2P |
| Optical Interface | N/A |
| Max. User Access | 128 users |
| Remote View | iOS (iPhone, iPad) / Android devices / Windows Phone* (limited functionality) |
| Storage | |
| Internal HDD | 2 x SATA ports up to 10TB, max. 20TB HDD capacity |
| HDD Modes | Single (no RAID compatibility) |
| USB Interface | 2 ports: Rear USB3.0 / Front USB2.0 |
| Auxiliary Inputs | N/A |
| Environment | |
| Power Supply | 48VDC / 2A |
| Power Consumption | < 9W (without HDD) |
| PoE | Yes |
| Operating Environment | -10 ~ 55°C / 10 ~ 90%RH / 86 ~ 106kpa |
| Rackmountable | No |
| Rackmount Units | 1RU |

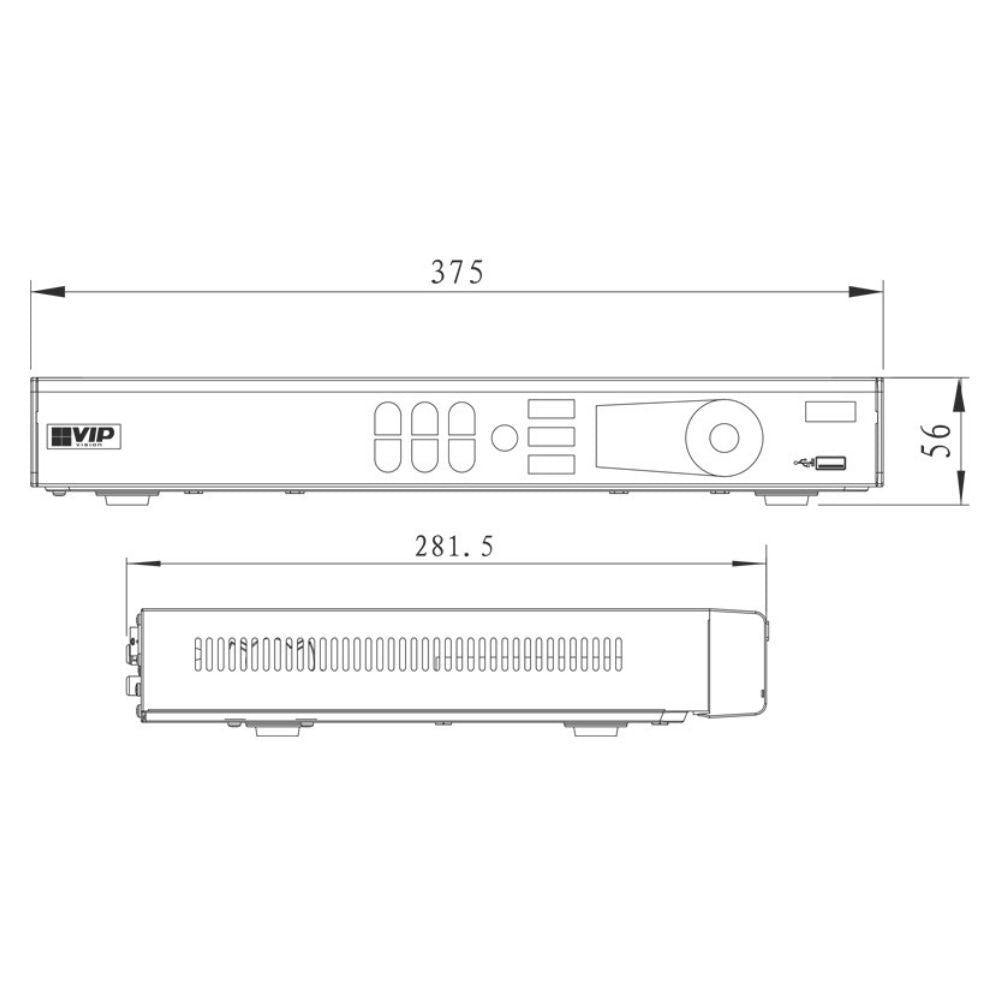

| Dimensions | 375 x 282 x 56mm |
| Weight | 1.60kg (without HDD) |
| Warranty (Years) | 4 |
